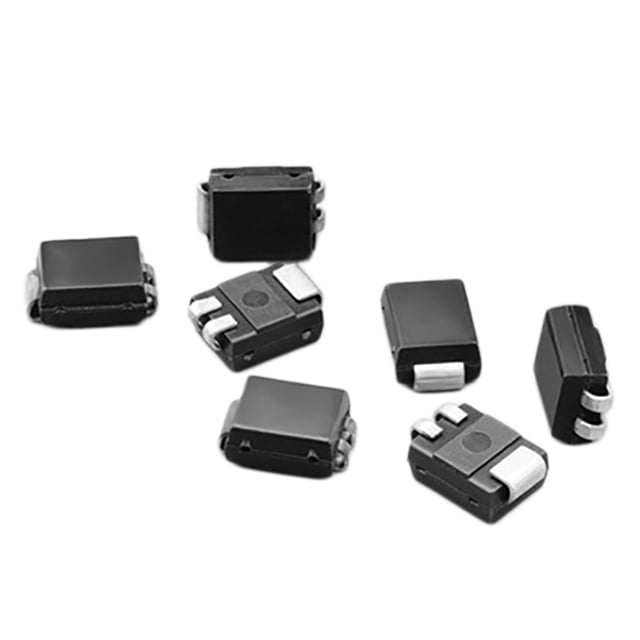

B2050CALRP Littelfuse B2050CALRP is a Battrax single positive SIDACtor protection thyristor designed for SLIC applications. Key specifications include adjustable breakdown voltage, 100 mA holding current, and surface mount DO-214AA package.
Mfr Part #:

B2050CALRP

Available from 1 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
Littelfuse B2050CALRP is a Battrax single positive SIDACtor protection thyristor designed for SLIC applications. Key specifications include adjustable breakdown voltage, 100 mA holding current, and surface mount DO-214AA package.
✓ Total Stock: 376 pcs
$ Price Range: $0.78

B2050CALRP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
376 pcs
On Request
376 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

B2050CALRP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Mounting Type
Number of Circuits
Package / Case
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

B2050CALRP Description

Short technical summary and product information.

The Littelfuse B2050CALRP is a Battrax series single positive SIDACtor overvoltage protection device optimized for Subscriber Line Interface Circuit (SLIC) applications. It uses mixed technology combining an SCR and gate diode to provide programmable breakdown voltage via an external VREF reference. The device begins conduction at |VREF| + 1.2 V and offers a range up to |VREF| + 10 V.



The part offers an off-state capacitance of 30 pF to 200 pF (measured at 1 MHz, 2 V bias), ensuring minimal loading on telecom lines. It features a maximum on-state voltage of 4 V at 2.2 A, with a maximum switching current of 100 mA and a minimum holding current of 100 mA. These parameters make it suitable for protecting sensitive SLIC components from transient overvoltages.



The B2050CALRP is offered in a surface mount DO-214AA (SMB) package with 3 leads (Compak format), designed for automated assembly. It meets RoHS3 compliance with Pb-free E3 finish. The part belongs to the Battrax family, which is recognized under UL file E133083.

B2050CALRP Quick Information

Product Type: SIDACtor Protection Thyristor
Series: Battrax
Canonical Name: Littelfuse B2050CALRP Battrax Single Positive SIDACtor Protection Thyristor
Subcategory: SLIC Protection

B2050CALRP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

B2050CALRP Estimated Pricing

Qty Low High
15,000+ $0.78 $0.78

Estimated market price range - modelled values for guidance only, not live distributor offers.

B2050CALRP Features

  • Programmable breakdown voltage via external VREF.
  • Low on-state voltage of 4 V at 2.2 A.
  • Surface mount DO-214AA package.
  • Designed for SLIC protection applications.
  • Off-state capacitance 30-200 pF at 1 MHz.

B2050CALRP Applications

  • Used in subscriber line interface circuits (SLICs).
  • Overvoltage protection for telecom equipment.
  • Gate triggered tracking for precise protection.

B2050CALRP FAQs

4 frequently asked questions generated from this part’s specifications.
What is the breakdown voltage of the B2050CALRP?

The breakdown voltage is programmable via an external VREF voltage. It conducts at |VREF| + 1.2 V (minimum) and the maximum breakdown voltage is |VREF| + 10 V.

What package and mounting type does the B2050CALRP use?

It uses a surface mount DO-214AA (SMB) package with 3 leads (Compak format). The supplier device package is DO-214AA.

What is the holding current (IH) of this device?

The minimum holding current is 100 mA.

What is the off-state capacitance range?

The off-state capacitance is 30 pF to 200 pF, measured at 1 MHz with 2 V bias.
