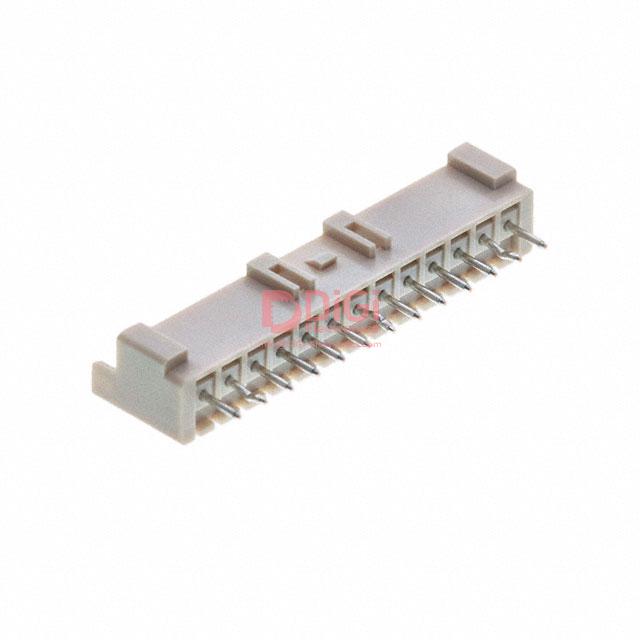

The JST Manufacturing B13B-XASK-1 is a wire to board connector from the XA series, designed for reliable connections in various applications. It features a 2.5mm pitch and accommodates 13 positions, making it suitable for compact designs.
This connector is rated for 3A AC/DC current and 250V AC/DC voltage, ensuring robust performance. It operates within a temperature range of -25°C to +85°C. The contact resistance is a maximum of 10mΩ initially and 20mΩ after environmental tests, with an insulation resistance of 1,000MΩ minimum.
The B13B-XASK-1 supports wire gauges from AWG #28 to #20 and is designed for PC boards with a thickness of 1.6mm. It features a secure lock device, solder crack preventive material, low insertion force, and an insertion guide mechanism, making it applicable to automatic board mounting machines. The connector is shrouded with 4 walls for enhanced protection and polarization.
This component is supplied in bulk packaging and is available on an emboss tape for automated assembly processes. It complies with RoHS3 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch of the JST B13B-XASK-1 connector is 2.5mm.
The JST B13B-XASK-1 connector has 13 positions.
The current rating for the JST B13B-XASK-1 connector is 3A AC/DC.
The voltage rating of the JST B13B-XASK-1 connector is 250V AC/DC.
The operating temperature range for the JST B13B-XASK-1 connector is -25°C to +85°C.
The JST B13B-XASK-1 connector is compatible with wire gauges from AWG #28 to #20.
The JST B13B-XASK-1 connector is applicable to PC boards with a thickness of 1.6mm.
