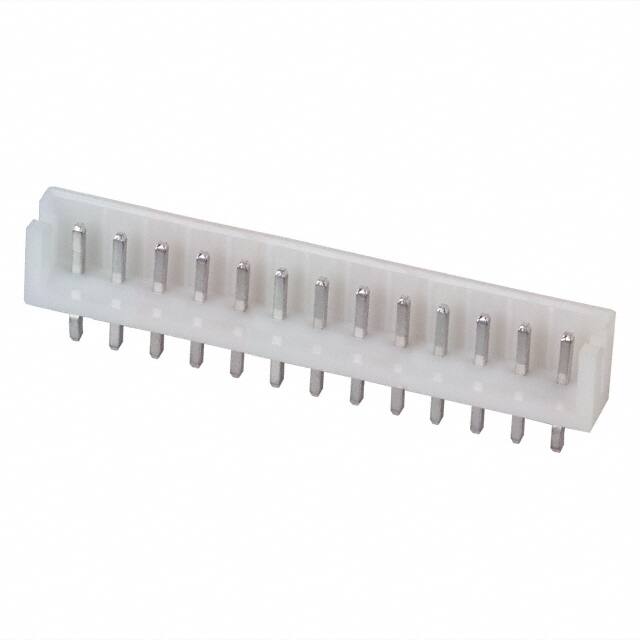

The JST B13B-EH-A is a 13 position single row shrouded header from the EH series, featuring a 2.5mm pitch. This wire-to-board connector is designed for through hole mounting and accepts wire gauges from AWG #32 to #22 with an insulation diameter range of 0.5mm to 1.9mm.
Electrical ratings include a current rating of 3A and voltage rating of 250V AC/DC. Contact resistance is 10 mΩ maximum initial and 20 mΩ maximum after environmental tests. Insulation resistance is 1000 MΩ minimum, and the connector withstands 800 VAC for one minute without breakdown.
The header is shrouded with a 3-wall design and features a friction lock for secure mating. The insulator is natural polyamide (PA66/Nylon 6/6) with UL94 V-0 flammability rating. Operating temperature range is -25°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.48 | $0.48 |
| 10+ | $0.41 | $0.41 |
| 250+ | $0.33 | $0.33 |
| 500+ | $0.31 | $0.31 |
| 1,000+ | $0.30 | $0.30 |
| 5,000+ | $0.26 | $0.26 |
| 10,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The B13B-EH-A has 13 positions, all loaded, in a single row.
The pitch is 2.50mm (0.098 inches).
The current rating is 3A.
The voltage rating is 250V AC/DC.
Through hole mounting with press-fit or solder termination.
-25°C to +85°C.
Accepts AWG #32 to #22 wire with insulation diameter 0.5mm to 1.9mm.
