| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
144 pcs
|
144 pcs | On Request | 144 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

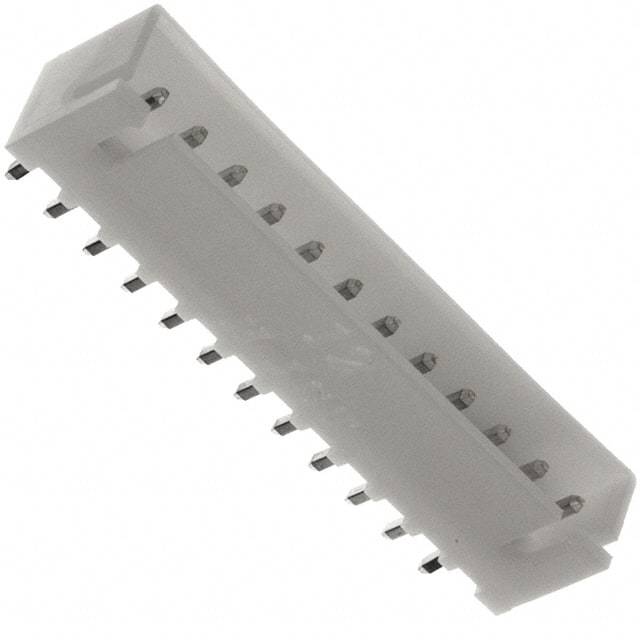

The JST B12B-XH-A(LF)(SN) is a 12-position, single-row header connector from the XH series. It features a shrouded 4-wall design with a detent lock fastening system for secure board-to-cable/wire connections.
The header uses square brass male pins with tin contact finish. The connector is rated for 3A current and 250V voltage, with an operating temperature range of -25°C to 85°C. It is designed for through hole mounting using press-fit or solder termination methods.
The insulation is made of Polyamide PA66/Nylon 6/6 with UL94 V-0 flammability rating. The natural colored housing has an insulation height of 7.00mm. Contact length is 3.40mm.
This header has 12 positions in a single row, all loaded.
The pitch is 2.50mm (0.098 inches).
It is rated for 3A current and 250V voltage.
It is a through hole mount header, with press-fit or solder termination.
