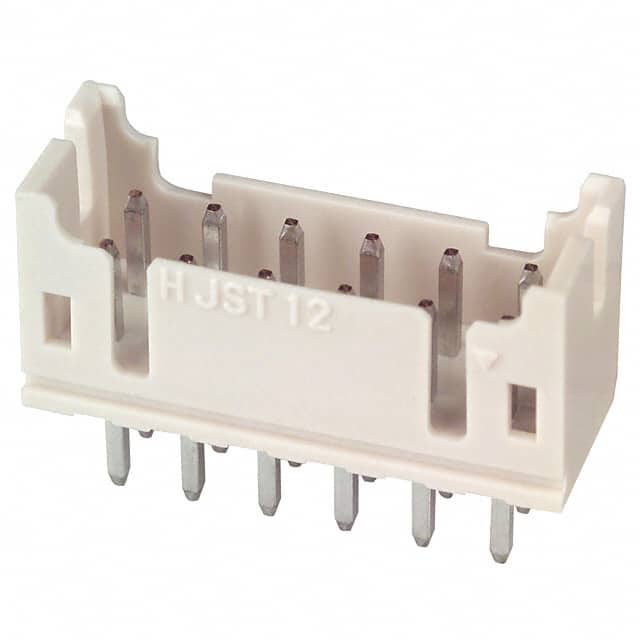

The JST PHD series B12B-PHDSS(LF)(SN) is a 12-position, 2-row, board-to-cable/wire rectangular connector. It features a 2.00mm pitch and row spacing, making it suitable for high-density applications. The header is shrouded with a 4-wall design and includes a detent lock for secure mating.
Electrical ratings include a current rating of 3A per contact and a voltage rating of 250V. Contact resistance is 20 mΩ maximum initially and 30 mΩ after environmental tests. Insulation resistance is 1000 MΩ minimum, and withstanding voltage is 1000V AC for one minute.
The insulator is made of glass-filled polyamide (PA) nylon with a UL94 V-0 flammability rating and natural color. The contacts are copper alloy with a tin finish. The mounting type is through hole with solder termination.
It has 12 positions arranged in 2 rows.
The pitch is 2.00mm (0.079 inches) with the same row spacing.
The current rating is 3A per contact.
The voltage rating is 250V.
It is a through-hole mounting type with solder termination.
The operating temperature range is -25°C to 85°C.
The applicable wire range is AWG 28 to AWG 22.
