| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
378 pcs
|
378 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Body Material | |
| Current Rating (Amps) | |
| Fuse Type | |
| Height | |
| Length | |
| Maximum power dissipation | |
| Mounting Type | |
| Operating Temperature | |
| Package Type | |
| Reel Size | |
| Standard Package Quantity | |
| Typical Cold Resistance | |
| Voltage Drop at 100% In | |
| Voltage Rating | |
| Width | |
| melting_i2t (Maximum @ @ 10 In) | |
| melting_i2t (Maximum @ Max. Melting I 2 T < 10 msec) |

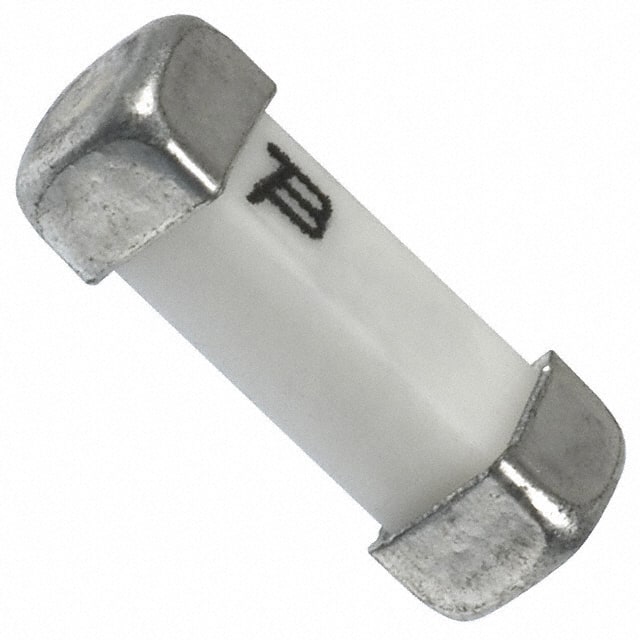

The Bourns B1250T is a board mount fuse designed for telecommunication circuit applications requiring low current protection with high surge tolerance. Rated at 1.25 A with a maximum voltage of 600 VAC, it provides overcurrent protection compliant with Telcordia GR-1089-CORE Issue 4 and UL 1950/60950 standards.
This fuse features a ceramic body with tin plated brass caps and is surface mountable in a compact 2-SMD, Square End Block package. Key electrical characteristics include a typical cold resistance of 0.075 Ohms, a maximum melting I2T of 14 A² sec (at less than 10 msec) and 17 A² sec (at 10 In), and a maximum power dissipation of 0.40 W. The operating temperature range spans -55°C to +125°C.
The B1250T is supplied on 13" reels with a standard package quantity of 2000 pieces. It is RoHS compliant and lead free, meeting the requirements of RoHS Directive 2011/65/EU.
The B1250T is rated for 1.25 A.
The voltage rating is 600 VAC.
The B1250T comes in a 2-SMD, Square End Block package for surface mount.
The operating temperature range is -55°C to +125°C.
