Mfr Part #:

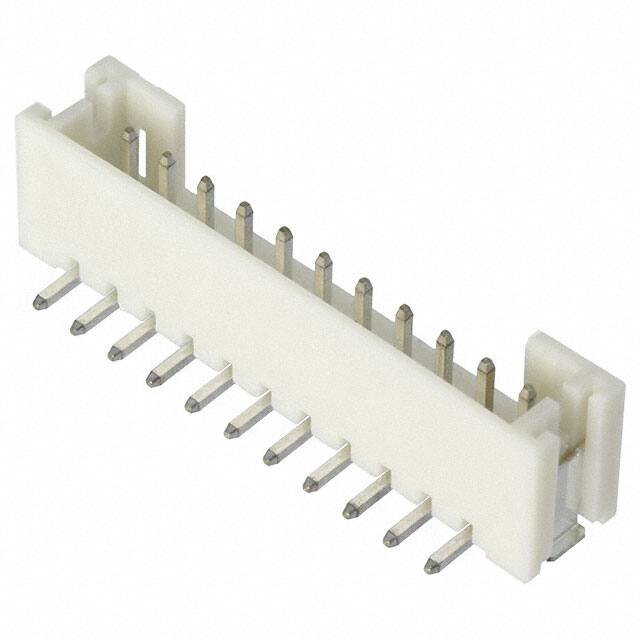

B11B-PH-SM4-TB(LF)(SN)

Name: B11B-PH-SM4-TB(LF)(SN)
Brand: Jst Manufacturing
SKU: B11B-PH-SM4-TB(LF)(SN)

Mfr Name: Jst Manufacturing

Description:

CONN HEADER SMD 11POS 2MM

Stock on Request

B11B-PH-SM4-TB(LF)(SN) Description

Short technical summary and product information.

CONN HEADER SMD 11POS 2MM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Jst Manufacturing
Connector Type	Header
Contact Finish	Tin
Contact Length	0.130" (3.30mm)
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2A
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.260" (6.60mm)
Insulation Material	Polyamide (PA6T), Nylon 6T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-25°C ~ 85°C
Pitch	0.079" (2.00mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100V
