| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,332 pcs
|
1332 pcs | On Request | 1 | On Request | On Request | 04+21 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Diode Type | |
| Forward Current | |
| Forward Voltage | |
| Mounting Type | |
| Reverse Recovery Time | |
| Reverse Voltage | |
| Supplier Device Package |

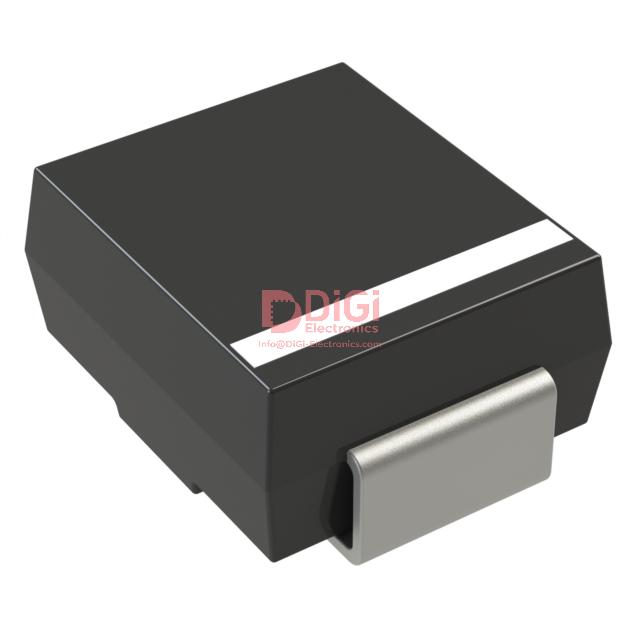

The B1100LB13 is a Schottky diode manufactured by Diodes Incorporated. It is designed for rectification applications with a maximum reverse voltage of 100V and an average forward current rating of 2A.
Key electrical characteristics include a forward voltage of 750mV at 1A and a reverse leakage current of 500µA at 100V. The diode has a fast recovery time of less than 500ns for currents greater than 200mA.
This component is supplied in an SMB package (DO-214AA) and is designed for surface mounting. It operates within a temperature range of -65°C to 175°C.
The B1100LB13 is suitable for various power supply and signal rectification circuits where efficient switching and low forward voltage drop are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100V.
2A average rectified.
Maximum 750mV at 1A.
≤500ns.
DO-214AA (SMB) surface mount.
-65°C to 175°C.
500µA at 100V.
