| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
109 pcs
|
109 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

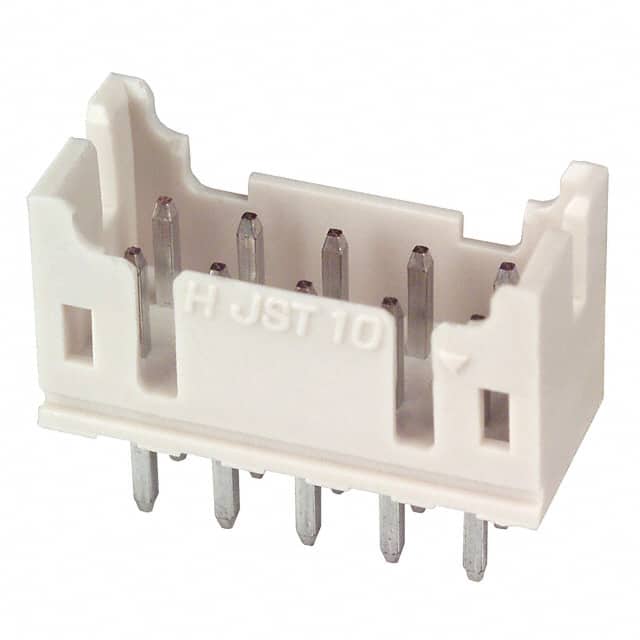

The JST B10B-PHDSS(LF)(SN) is a 10-position, 2-row shrouded header from the PHD series. Designed for board-to-cable/wire applications, this through-hole connector features a 2.00mm pitch and 2.00mm row spacing. The header is fully shrouded with a 4-wall design and includes a detent lock for secure mating.
The square male pins are made of copper alloy with a tin finish. The insulator is natural colored polyamide (PA) nylon, glass filled, with a UL94 V-0 flammability rating. The connector operates over a temperature range of -25°C to 85°C.
This header is rated for 3A current and 250V voltage, suitable for a variety of low-power interconnects. The through-hole mounting and solder termination ensure reliable mechanical attachment to a PCB. The JST PHD series is known for its compact size and high reliability, making it a common choice for consumer electronics and industrial equipment.
10 positions in a 2-row configuration.
2.00mm (0.079 inches) between pins.
3 Amperes.
250 Volts.
Through hole with solder termination.
-25°C to 85°C.
Yes, it is a shrouded 4-wall header.
