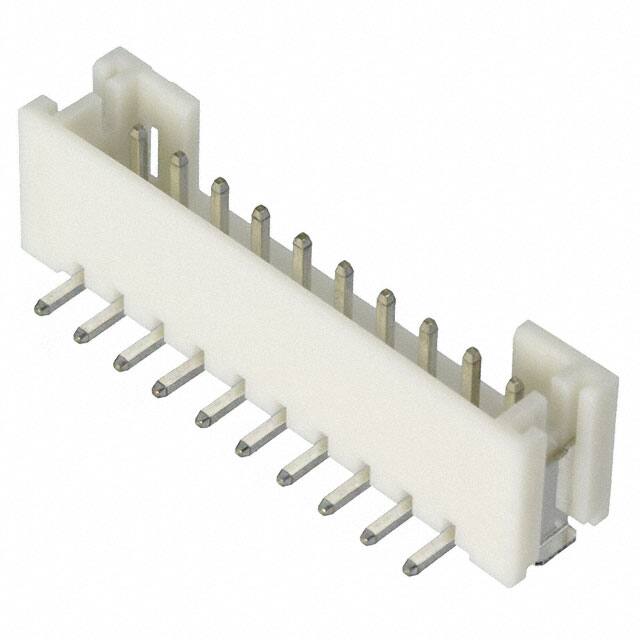

This JST PH series connector is a 10-position, single row, surface mount header with a 2.00mm pitch. It features a shrouded 4-wall design for protection and a detent lock for secure mating. The header is designed for board-to-cable/wire applications.
Electrical and mechanical specifications: rated current 2A, voltage 100V, operating temperature range -25°C to 85°C. Contacts are copper alloy with tin finish, insulation material is PA6T nylon 6T with UL94 V-0 flammability rating. Contact length is 3.30mm, insulation height 6.60mm.
Mounting is surface mount with solder termination. The header includes a solder retention feature for reliable soldering. It is RoHS3 compliant and has MSL 1 (unverified). Available in tape and reel packaging (typical for SMT components).
10 positions.
2.00mm.
2A.
100V.
Surface mount.
-25°C to 85°C.
Detent lock.
