| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
223 pcs
|
223 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

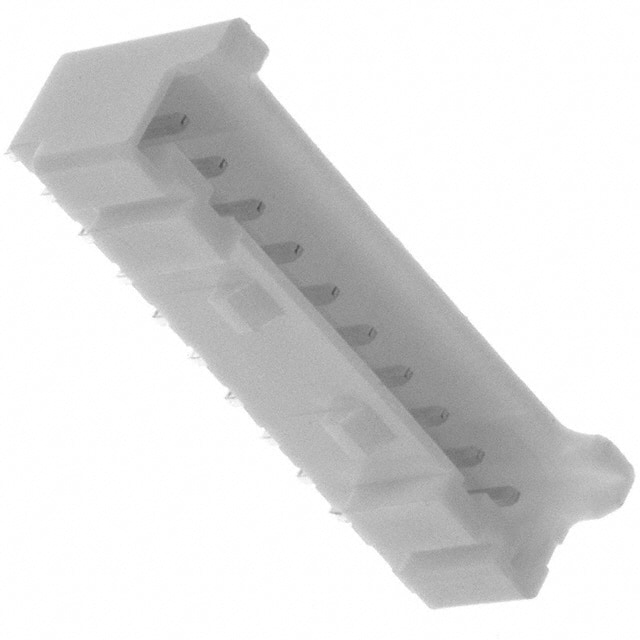

The B10B-PASK-1(LF)(SN) is a 10-position, single row shrouded header connector from JST Manufacturing, part of the PA series. It features a 2.00mm pitch, male pin contacts with tin plating, and a locking ramp fastening mechanism for secure mating. The housing is made of glass-filled PBT with a natural color and UL94 V-0 flammability rating.
The header is designed for board-to-cable/wire applications with a through hole mounting and kinked pin solder termination. Electrical ratings include 3A current and 250V voltage, with an operating temperature range of -25°C to 85°C. The shrouded 4-wall design provides robust protection and alignment during mating.
Square pin contacts made from copper alloy ensure reliable electrical contact. The connector includes a board guide feature for ease of insertion. This header is suitable for a variety of electronic interconnect applications requiring a compact, high-retention connector.
It has 10 positions in a single row, all loaded.
The pitch is 2.00mm.
It is rated for 3A.
The voltage rating is 250V.
It uses through hole mounting with kinked pin solder termination.
The operating temperature range is -25°C to 85°C.
The insulation material is glass-filled PBT with UL94 V-0 rating.
