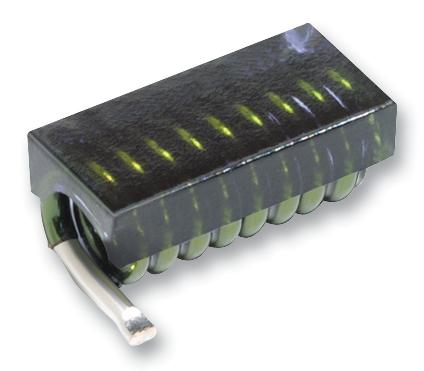

B07TGLC The Coilcraft B07TGLC is an RF inductor with a 22 nH inductance and a 4A current rating. It features a compact SMD package.
Mfr Part #:

B07TGLC

Available from 2 distributors
Mfr Name: Coilcraft
Coilcraft
The Coilcraft B07TGLC is an RF inductor with a 22 nH inductance and a 4A current rating. It features a compact SMD package.
✓ Total Stock: 178 pcs
$ Price Range: $0.20

B07TGLC Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
103 pcs
On Request
103 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
75 pcs
On Request
75 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

B07TGLC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
DC Resistance
Inductance
Mounting Type
SVHC Present
Self Resonant Frequency
View Similar Products (0)

B07TGLC Description

Short technical summary and product information.

The Coilcraft B07TGLC is a surface-mount device (SMD) inductor designed for RF applications. It offers an inductance value of 22 nH with a tolerance of ± 2% and can handle a current rating of up to 4A RMS. The inductor has a low DC resistance of 0.0052 Ohms and a minimum self-resonant frequency of 2.1 GHz.



This component is part of the Mini Spring series and comes in a package measuring 6.86mm x 2.79mm x 3.15mm. It is manufactured in China and supplied on cut tape.



The B07TGLC is suitable for various electronic circuits requiring precise inductance and current handling capabilities in a small form factor.

B07TGLC Quick Information

Product Type: RF Inductor
Series: Mini Spring
Canonical Name: B07TGLC RF Inductor
Subcategory: RF Inductor

B07TGLC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

B07TGLC Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

B07TGLC Features

  • 22 nH inductance with ± 2% tolerance.
  • Rated for 4A RMS current.
  • Low 0.0052 Ohm DC resistance.
  • Minimum self-resonant frequency of 2.1 GHz.
  • Compact SMD package for surface mounting.

B07TGLC Applications

  • Ideal for RF signal filtering circuits.
  • Used in high-frequency power supplies.
  • Suitable for impedance matching networks.
  • Common in VCO and PLL designs.
  • Employed in broadband amplifiers.

B07TGLC FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the Coilcraft B07TGLC?

The inductance of the Coilcraft B07TGLC is 22 nH.

What is the current rating for the B07TGLC inductor?

The B07TGLC inductor has a current rating of 4A RMS.

What is the DC resistance of the Coilcraft B07TGLC?

The DC resistance of the Coilcraft B07TGLC is 0.0052 Ohms.

What is the self-resonant frequency of the B07TGLC?

The minimum self-resonant frequency of the B07TGLC is 2.1 GHz.

What are the dimensions of the Coilcraft B07TGLC inductor?

The dimensions of the Coilcraft B07TGLC inductor are 6.86mm x 2.79mm x 3.15mm.

How is the Coilcraft B07TGLC inductor packaged?

The Coilcraft B07TGLC inductor is supplied on cut tape.
