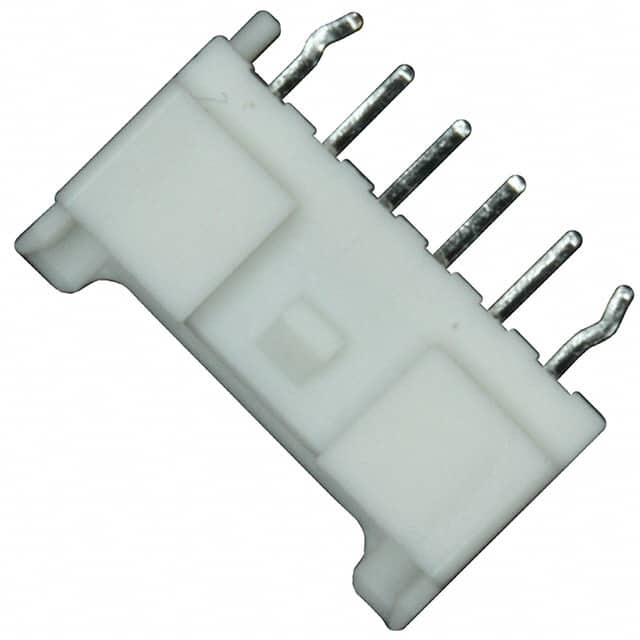

The B06B-PASK-1(LF)(SN) is a 6-position, single-row male pin header part of the JST PA series. It is designed for board-to-wire (cable/wire) interconnect applications and features a fully shrouded 4-wall housing with an integrated locking ramp for secure mating. The header is through-hole mounted with kinked pin solder termination, providing reliable mechanical retention.
Mechanical specifications include a 2.00mm pitch, 7.70mm insulation height, and 3.20mm mating contact length. Contacts are made of copper alloy with a tin finish and square shape. The insulator is natural-colored, glass-filled PBT with a UL94 V-0 flammability rating. The part also includes a board guide feature for alignment during assembly.
Electrically, the header is rated for 3A current and 250V voltage. It has a contact resistance of 20 mΩ max initial and 30 mΩ max after environmental tests, with insulation resistance of 1000 MΩ min and withstanding voltage of 1000 VAC for 1 minute. The applicable wire gauge range is 22-28 AWG, and the recommended PC board thickness is 1.6mm. Operating temperature range is -25°C to 85°C.
Compliance information includes a reported RoHS3 status (unverified), MSL 1 (unlimited), and REACH unaffected (unverified). The material flammability rating is UL94 V-0. Note that packaging type and standard package quantity are not specified in available data.
It has 6 positions in a single row.
The pitch is 2.00mm.
The current rating is 3A.
The voltage rating is 250V.
The mounting type is through hole.
The operating temperature range is -25°C to 85°C.
Contact resistance is 20 mΩ max initial and 30 mΩ max after environmental tests.
