| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
999 pcs
|
999 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

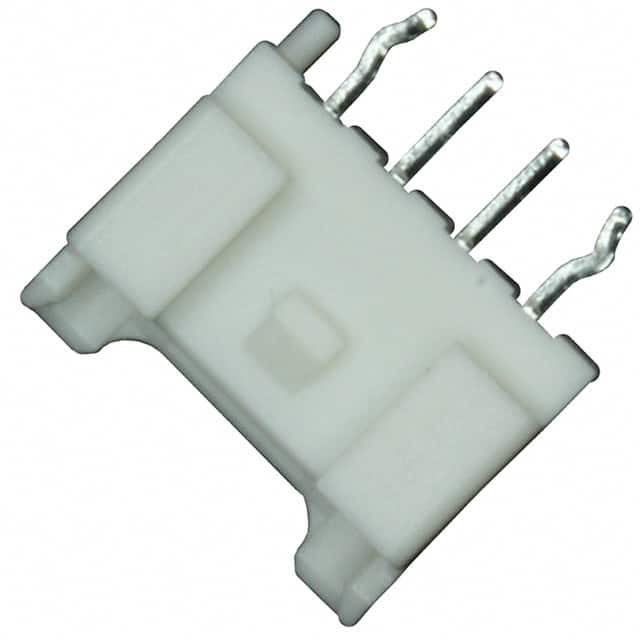

The JST B04B-PASK-1(LF)(SN) is a 4-position, single-row, 2.00mm pitch through-hole header from the PA family. It features a shrouded 4-wall design with a locking ramp for secure mating with PA series crimp housings. The header uses kinked pin solder terminals and is made with copper alloy contacts finished in tin.\n\nElectrical ratings include 3A current and 250V voltage, with an operating temperature range of -25°C to 85°C. The insulation is natural polybutylene terephthalate (PBT) glass-filled with a UL94 V-0 flammability rating. A board guide feature assists alignment during assembly.\n\nThis connector is suitable for board-to-cable/wire applications requiring a compact, reliable connection. The through-hole mounting and locking ramp provide mechanical stability in high-vibration environments.
The header has 4 positions in a single row.
The pitch is 2.00mm.
The current rating is 3A.
The voltage rating is 250V.
It is a through-hole mounting header.
The operating temperature range is -25°C to 85°C.
The connector uses a locking ramp fastening mechanism.
