| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
186 pcs
|
186 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Current Rating | |
| Ingress Protection | |
| Insulation Color | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch - Mating | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

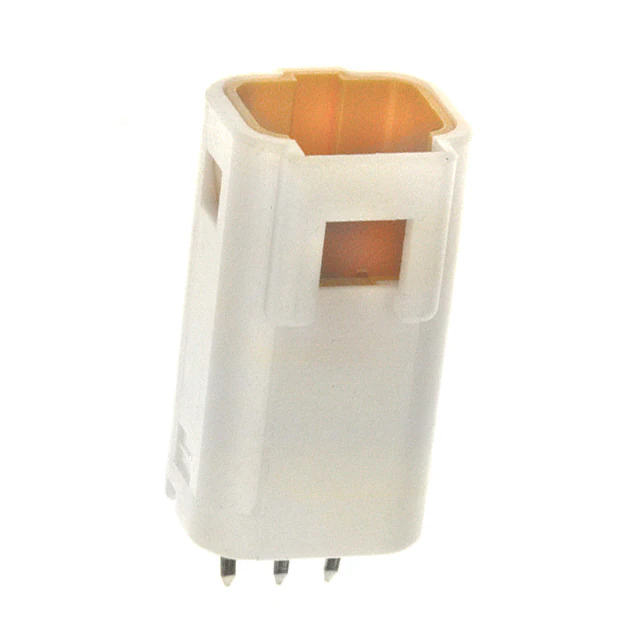

The JST B03B-JWPF-SK-R is a rectangular connector header designed for board-to-cable applications. It features 3 positions with a mating pitch of 2.00mm and a single row configuration.
This header has a through-hole mounting type and a kinked pin, solder termination style. It is rated for a current of 3A and a voltage of 100V. The insulation material is Polybutylene Terephthalate (PBT) with glass filling, and the insulation color is natural. The operating temperature range is -55°C to 85°C.
Constructed with a copper alloy contact material and a tin finish, this connector is designed for durability. It meets RoHS compliance standards and has an ingress protection rating of Dust Tight, Waterproof. The flammability rating is UL94 V-0.
This component is part of the JWPF series and comes in bulk packaging. Its robust design makes it suitable for various industrial applications requiring reliable connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The mating pitch is 2.00mm.
It has 3 positions.
The current rating is 3A.
The voltage rating is 100V.
It uses through hole mounting.
The operating temperature range is -55°C to 85°C.
The insulation material has a UL94 V-0 flammability rating.
