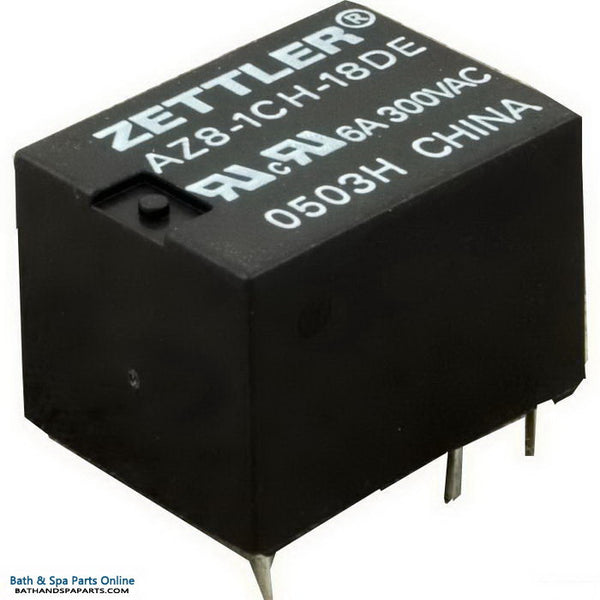

The American Zettler AZ8-1CH-18DE is a general-purpose, non-latching power relay designed for reliable electrical switching. It features a SPDT (1 Form C) contact configuration with a current rating of 6A and a maximum switching voltage of 300VAC or 150VDC. The relay operates with an 18VDC coil, drawing approximately 25mA, and requires a must-operate voltage of 13.5VDC.
This relay is built for durability, with a sealed enclosure and silver nickel contact material. It has an operate time of 5ms and a release time of 2ms. The operating temperature range is -55°C to 90°C, and it utilizes Class B coil insulation. The mounting type is through-hole with PC pin termination, making it suitable for direct board mounting.
Designed for demanding environments, this relay is well-suited for applications requiring dependable performance in pool and spa systems, as indicated by its application-specific design and durable construction. It is ideal for maintenance, repair, or replacement within such equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AZ8-1CH-18DE has an SPDT (Single Pole Double Throw) contact form.
The contact rating is 6 amperes.
The maximum switching voltage for AC is 300VAC.
The maximum switching voltage for DC is 150VDC.
The coil voltage is 18VDC.
-55°C to 90°C.
Yes, it is RoHS3 compliant.
