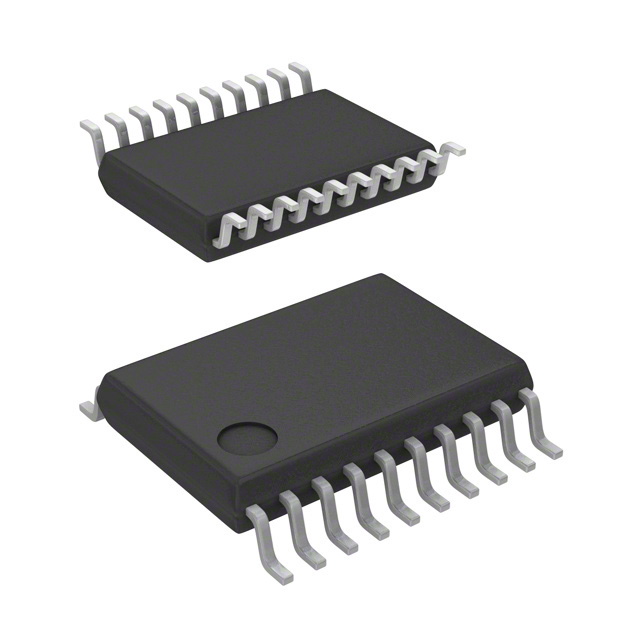

The AZ75232GSTR-G1 is an RS-232 transceiver from Diodes Incorporated that combines three drivers and five receivers in a single 20-SSOP package. It conforms to EIA/TIA-232-F and ITU v.28 standards, making it suitable for serial communication interfaces between data terminal equipment and data communications equipment.
The device supports data rates up to 120 kbps and operates in full-duplex mode. It requires a positive supply voltage of 4.5V to 5.5V and a negative supply voltage of -7.5V to -15V for the driver. The receiver hysteresis is typically 500 mV, providing noise immunity.
The AZ75232GSTR-G1 is designed for surface-mount assembly and is available in tape and reel packaging. It operates over a temperature range of -40°C to 85°C, making it suitable for a variety of industrial and commercial applications.
Typical applications include motherboards and peripheral equipment where reliable RS-232 communication is required.
The positive supply voltage range is 4.5V to 5.5V and the negative supply voltage range is -7.5V to -15V.
The device is available in a 20-SSOP (0.209", 5.30mm Width) surface mount package.
The operating temperature range is -40°C to +85°C.
Yes, the device is RoHS3 compliant.
The maximum data rate is 120 kbps.
It has 3 drivers and 5 receivers.
Yes, it supports full-duplex operation.
