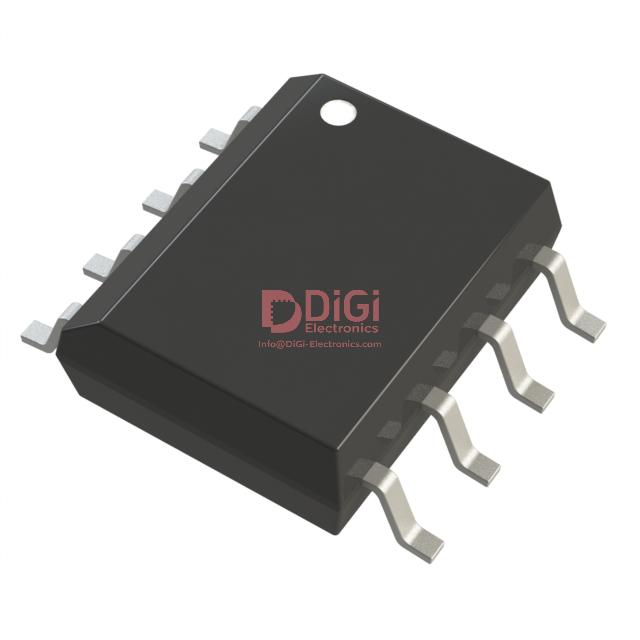

AZ34063UMTR-G1 The Diodes Incorporated AZ34063UMTR-G1 is a versatile DC-DC switching regulator IC. It supports step-up, step-down, and inverting applications with an adjustable output voltage.
Mfr Part #:

AZ34063UMTR-G1

Available from 4 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated AZ34063UMTR-G1 is a versatile DC-DC switching regulator IC. It supports step-up, step-down, and inverting applications with an adjustable output voltage.
✓ Total Stock: 84,186 pcs
$ Price Range: $0.16

AZ34063UMTR-G1 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
50,000 pcs
On Request
50000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
32,130 pcs
On Request
32130 pcs On Request 1 On Request On Request 21+20+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,696 pcs
On Request
1696 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
360 pcs
On Request
360 pcs On Request 1 On Request On Request 23+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AZ34063UMTR-G1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Halogen Free
Lead Spacing
Lead Style
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
SVHC Present
Supplier Device Package
Supplier Package
Synchronous Rectifier
Tape & Reel
Topology
Voltage
View Similar Products (0)

AZ34063UMTR-G1 Description

Short technical summary and product information.

The AZ34063UMTR-G1 from Diodes Incorporated is a monolithic switching regulator control circuit designed for DC-DC conversion. It integrates essential functions including a temperature-compensated reference, voltage comparator, controlled duty-cycle oscillator with current limiting, driver, and a high-current output switch.



This device is specifically engineered for step-down, step-up, and voltage-inverting applications, requiring a minimal number of external components. It operates from a wide input voltage range of 3.0V to 36V and can handle an output switch current of up to 1.5A. The operating frequency can reach up to 180kHz, offering flexibility in design.



The AZ34063UMTR-G1 is available in an 8-SOIC package, suitable for surface mount applications. Its adjustable output voltage and positive or negative output configuration make it a versatile choice for various power management needs, including battery chargers and negative voltage power supplies.

AZ34063UMTR-G1 Quick Information

Product Type: DC-DC Switching Regulator
Series: AZ34063
Canonical Name: AZ34063UMTR-G1 DC-DC Converter
Subcategory: Voltage Regulators

AZ34063UMTR-G1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

AZ34063UMTR-G1 Estimated Pricing

Qty Low High
1+ $0.16 $0.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

AZ34063UMTR-G1 Features

  • Monolithic DC-DC switching regulator circuit.
  • Supports step-up, step-down, and inverting applications.
  • Adjustable output voltage capability.
  • 1.5A output switch current.
  • Wide 3V to 36V input voltage range.

AZ34063UMTR-G1 Applications

  • Used in battery chargers.
  • Suitable for ADSL modems.
  • Applicable for hubs.
  • Enables negative voltage power supplies.

AZ34063UMTR-G1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the AZ34063UMTR-G1?

The input voltage range is from 3V to 36V.

What is the maximum output switch current for this regulator?

The output switch current is 1.5A.

What type of DC-DC conversion does the AZ34063UMTR-G1 support?

It supports step-up, step-down, and inverting applications.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package type is the AZ34063UMTR-G1 available in?

It is available in an 8-SOIC package.

Is the AZ34063UMTR-G1 RoHS compliant?

Yes, it is RoHS3 Compliant.
