| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
878 pcs
|
878 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Type | |
| Conductor Material | |
| Conductor Strand | |
| Jacket (Insulation) Diameter | |
| Jacket (Insulation) Material | |
| Jacket (Insulation) Thickness | |
| Jacket Color | |
| Length | |
| Operating Temperature | |
| Voltage | |
| Wire Gauge |

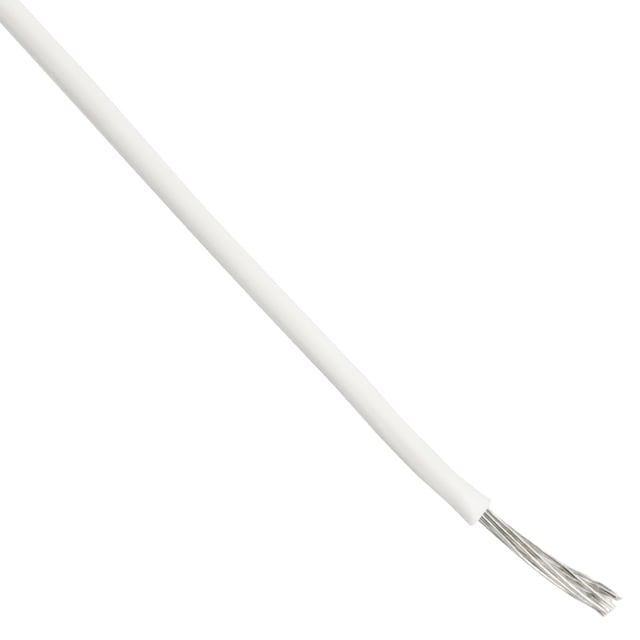

This Alpha Wire AZ221934 WH001 is a 22 AWG hook-up wire designed for general-purpose internal wiring of electronic equipment. The conductor is 19/34 stranded tinned copper, providing flexibility and corrosion resistance. The insulation is ethylene tetrafluoroethylene (ETFE), a high-performance fluoropolymer known for excellent thermal and chemical resistance.
The wire is rated for 600V and an operating temperature range of -55°C to 150°C, making it suitable for demanding environments. The jacket diameter is 0.052 inches with a thickness of 0.011 inches. The white color aids in identification and routing. This spool contains 1000 feet of wire.
| Qty | Low | High |
|---|---|---|
| 1+ | $536.87 | $536.87 |
| 2+ | $510.41 | $510.41 |
| 3+ | $495.44 | $495.44 |
| 5+ | $477.08 | $477.08 |
| 7+ | $465.29 | $465.29 |
| 10+ | $453.05 | $453.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22 AWG.
Tinned copper, 19/34 stranding.
Ethylene Tetrafluoroethylene (ETFE).
600V.
-55°C to 150°C.
1000 feet (304.8 meters).
White.
