| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,591 pcs
|
9591 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request | |
|
1,046 pcs
|
1046 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Operating Temperature | |
| Output Current | |
| Regulator Type | |
| Supplier Device Package | |
| Tape & Reel |

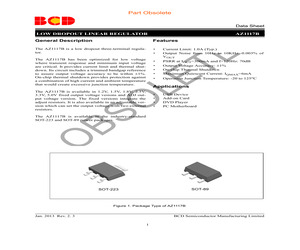

The BCD AZ1117BH-1.2TRE1 is a fixed positive Low Dropout (LDO) voltage regulator designed for various electronic applications. It features a nominal output voltage of 1.2V and can supply a maximum output current of 1A. The regulator has a maximum input voltage of 10V and a minimum input voltage of 1.5V. Its dropout voltage is typically 1.2V at 800mA, with a maximum specified at 1.3V.
This component operates within a temperature range of -20°C to 125°C. It is housed in a plastic/epoxy SOT-223 package, also referred to as TO-261-4 or TO-261AA, with gull wing terminal form and a terminal pitch of 2.3mm. The small outline package is rectangular in shape. The AZ1117BH-1.2TRE1 is supplied in tape and reel packaging.
Key electrical characteristics include a typical output current of 800mA and a minimum current limit of 850mA. The regulator has a single function and is designed for positive fixed regulation.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.13 | $2.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal output voltage is 1.2V.
The maximum output current is 1A.
The dropout voltage is typically 1.2V at 800mA.
The operating temperature range is -20°C to 125°C.
It is supplied in a SOT-223 package, also known as TO-261-4 or TO-261AA.
