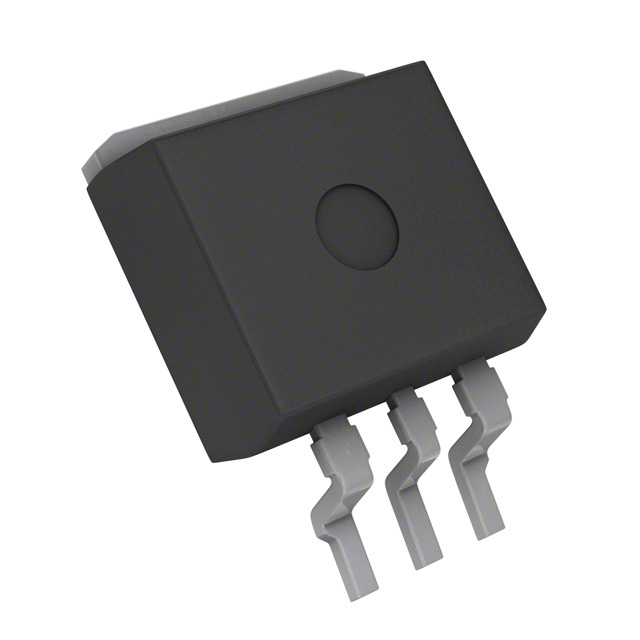

AZ1085S-ADJTRE1 The Diodes Incorporated AZ1085S-ADJTRE1 is an adjustable positive linear voltage regulator IC. It features a 3A output current and a low dropout voltage of 1.5V.
Mfr Part #:

AZ1085S-ADJTRE1

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated AZ1085S-ADJTRE1 is an adjustable positive linear voltage regulator IC. It features a 3A output current and a low dropout voltage of 1.5V.
✓ Total Stock: 5,574 pcs
$ Price Range: $0.30

AZ1085S-ADJTRE1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
5,574 pcs
On Request
5574 pcs On Request 1 On Request On Request 1616+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AZ1085S-ADJTRE1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Input Voltage
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Type
PSRR
Protection Features
Supplier Device Package
Tape & Reel
Voltage
Voltage Dropout (Max)
View Similar Products (0)

AZ1085S-ADJTRE1 Description

Short technical summary and product information.

The AZ1085S-ADJTRE1 from Diodes Incorporated is an adjustable positive linear voltage regulator designed for high-efficiency applications. It offers a maximum output current of 3A and a typical dropout voltage of 1.3V at 3A load, with a maximum of 1.5V.



Key electrical specifications include a line regulation of 0.015% typical and a load regulation of 0.1% typical. The device operates over a junction temperature range of 0°C to 125°C and includes over-current and over-temperature protection features.



This regulator is available in a TO-263 surface-mount package, making it suitable for various power management needs in applications such as battery chargers and post-regulation for switching supplies.

AZ1085S-ADJTRE1 Quick Information

Product Type: Linear Voltage Regulator
Series: AZ1085
Canonical Name: AZ1085 Series Adjustable Positive Linear Voltage Regulator
Subcategory: PMIC

AZ1085S-ADJTRE1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AZ1085S-ADJTRE1 Estimated Pricing

Qty Low High
1+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

AZ1085S-ADJTRE1 Features

  • Adjustable positive linear voltage regulator.
  • Maximum output current of 3A.
  • Low dropout voltage of 1.5V.
  • Over-current and over-temperature protection.
  • Surface mount TO-263 package.

AZ1085S-ADJTRE1 Applications

  • High efficiency linear regulators.
  • Battery charger applications.
  • Post regulation for switching supplies.
  • Microprocessor power supplies.

AZ1085S-ADJTRE1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum output current for the AZ1085S-ADJTRE1?

The maximum output current for the AZ1085S-ADJTRE1 is 3A.

What is the dropout voltage of the AZ1085S-ADJTRE1?

The dropout voltage is a maximum of 1.5V at 3A load.

What is the operating temperature range for the AZ1085S-ADJTRE1?

The operating temperature range is 0°C to 125°C.

What package type is the AZ1085S-ADJTRE1 available in?

The AZ1085S-ADJTRE1 is available in a TO-263 package.

What are the protection features of the AZ1085S-ADJTRE1?

The protection features include over current and over temperature.
