| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,600 pcs
|
4600 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Regulator Type | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology |

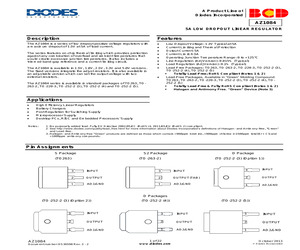

The AZ1084S-ADJTRE1 from BCD is an adjustable positive low dropout linear regulator designed for high current applications. It offers a maximum output current of 5A with a typical dropout voltage of 1.3V at this load. The regulator includes on-chip thermal limiting and current limiting circuits, providing protection against overload conditions.
This device supports an adjustable output voltage, allowing flexibility in design. Key electrical specifications include a typical line regulation of 0.015% and a typical load regulation of 0.2%. The operating junction temperature range is from 0°C to 125°C.
The AZ1084S-ADJTRE1 is available in a TO-263-3 surface mount package. This package type is suitable for applications requiring efficient heat dissipation and a compact footprint. The terminal pitch is 2.54 mm, and it features gull wing terminals.
Applications for this regulator include high efficiency linear regulators, battery chargers, and post-regulation for switching power supplies. It is also suitable for microprocessor supplies in desktop PCs and embedded systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output current is 5A.
The typical dropout voltage is 1.3V at 5A.
The operating junction temperature range is 0°C to 125°C.
The AZ1084S-ADJTRE1 is available in a TO-263-3 package.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
