| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Material | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating (Amps) | |
| Housing Material | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

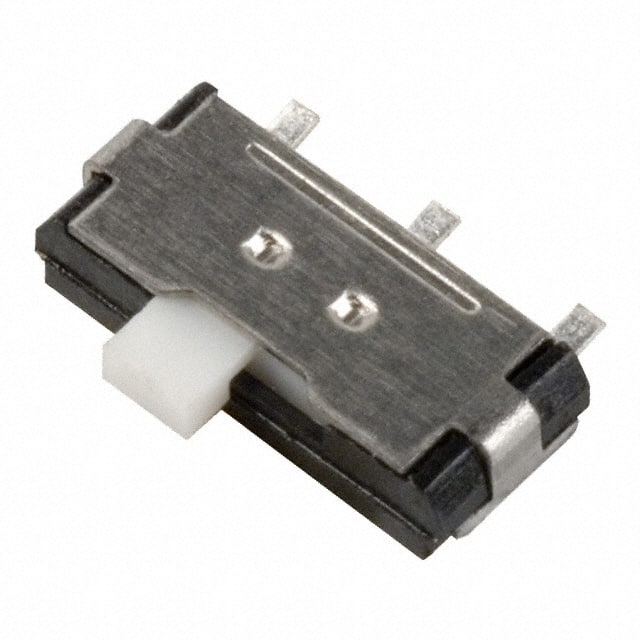

The C&K AYZ0102AGRLC is a miniature slide switch from the AYZ series, featuring a low-profile design suitable for various electronic applications. This switch offers a Single Pole Double Throw (SPDT) configuration with an On-On function, rated for a maximum switching voltage of 12 VDC and a maximum switching current of 100 mA.
Constructed with a glass-filled nylon housing and a SUS actuator, the AYZ0102AGRLC utilizes copper alloy contacts plated with silver. It has a mechanical life of 10,000 operations and a contact resistance of less than 80mΩ. The operating temperature range is from -40°C to 85°C, making it suitable for demanding environments.
This slide switch is designed for surface mount applications with a Gull Wing termination style. It is supplied in Tape & Reel packaging. The AYZ series is known for its performance and reliability in computer peripherals, network products, telecommunication products, and test and measurement equipment.
Key specifications include a maximum switching power of 1.2 VA, insulation resistance greater than 10^8 Ω, and a dielectric strength of 0.1 kV. The switch is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 12 VDC.
It has an SPDT contact form.
The maximum switching power is 1.2 VA.
-40°C to 85°C.
It has a mechanical life of 10,000 operations.
It is packaged in Tape & Reel format.
