| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,182 pcs
|
7182 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

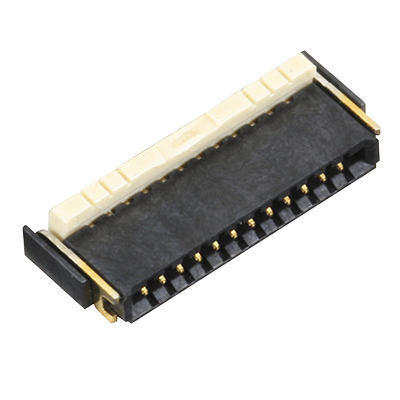

The Panasonic AYF531035 is a 10-position FFC/FPC connector with a 0.5mm pitch, designed for surface mount right angle installation. It features gold-plated copper alloy contacts for reliable electrical performance and a liquid crystal polymer (LCP) housing with a UL94 V-0 flammability rating. The connector supports FFC and FPC cables with a thickness of 0.30mm and includes a flip lock actuator for secure cable retention.
This connector is rated for 50V DC operation and operates over a temperature range of -55°C to 85°C. The contacts are arranged on top and bottom, allowing for versatile cable insertion. The housing and actuator are both made from LCP, providing good mechanical strength and thermal stability.
Typical applications include compact consumer electronics, industrial controls, and any design requiring a reliable, low-profile flexible circuit connection. The right angle orientation helps save board space in dense PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.88 | $0.88 |
| 10+ | $0.75 | $0.75 |
| 25+ | $0.67 | $0.67 |
| 100+ | $0.63 | $0.63 |
| 250+ | $0.59 | $0.59 |
| 500+ | $0.57 | $0.57 |
| 1,000+ | $0.54 | $0.54 |
| 2,500+ | $0.50 | $0.50 |
| 5,000+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AYF531035 has 10 positions.
The pitch is 0.50mm (0.020").
The voltage rating is 50V.
It uses surface mount, right angle mounting.
The operating temperature range is -55°C to 85°C.
The contact finish is gold.
It has a flip lock, backlock locking feature.
