| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,764 pcs
|
2764 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
318 pcs
|
318 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Packing Method | |
| Pitch | |
| Standard Package Quantity | |
| Storage Temperature | |
| Termination | |
| Voltage Rating |

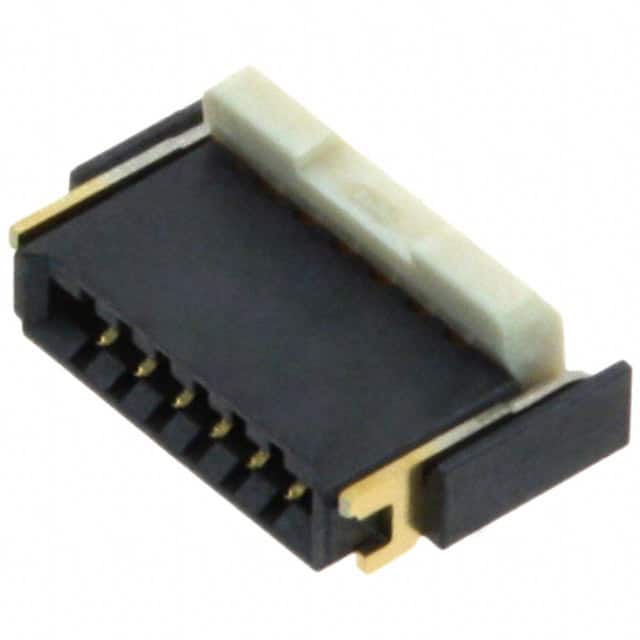

The Panasonic AYF530635 is a 6-position FFC/FPC connector from the Y5B series, designed for compact electronic assemblies. It features a 0.5mm pitch and a surface mount right angle mounting style, with solder termination for reliable connections. The connector uses a flip lock and backlock actuator to secure the cable, and supports both top and bottom contacts. Contacts are made of copper alloy with gold plating, while the housing and actuator are molded from liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The connector accepts FFC/FPC cables with a tapered end and thickness of 0.30mm, and has a low profile height of 1.00mm above the board. Electrical rating is 50V, and the operating temperature range is -55°C to 85°C. It is RoHS and REACH compliant, with an MSL of 1 (unlimited). Packaging is tape and reel with 5000 pieces per reel. Applications include mobile phones, smartphones, PCs, digital cameras, touch panels, and LCD backlights.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.73 | $0.73 |
| 10+ | $0.62 | $0.62 |
| 25+ | $0.58 | $0.58 |
| 50+ | $0.55 | $0.55 |
| 100+ | $0.52 | $0.52 |
| 250+ | $0.49 | $0.49 |
| 500+ | $0.47 | $0.47 |
| 1,000+ | $0.45 | $0.45 |
| 2,500+ | $0.42 | $0.42 |
| 5,000+ | $0.40 | $0.40 |
| 10,000+ | $0.38 | $0.38 |
| 15,000+ | $0.37 | $0.37 |
| 25,000+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
0.5mm (0.020").
50V.
Surface Mount, Right Angle.
-55°C to 85°C.
Flip Lock, Backlock.
Gold.
