Mfr Part #:

AYF522615

Name: AYF522615
Brand: Panasonic Electronic Components
SKU: AYF522615

Description:

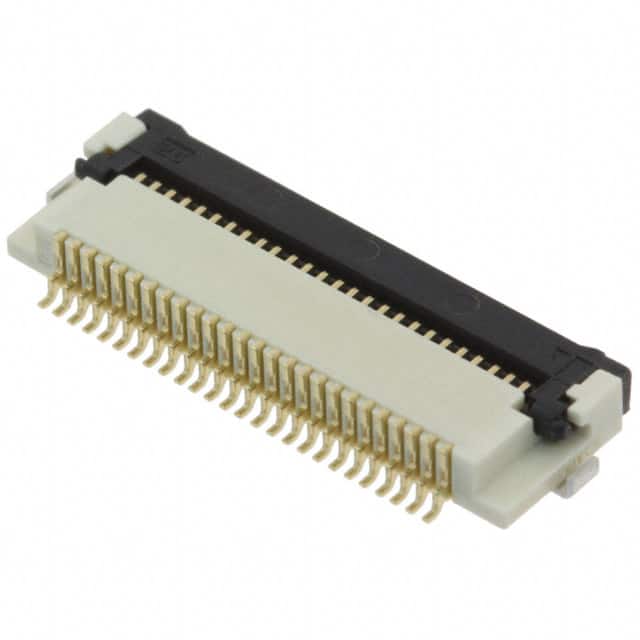

CONN FFC BOTTOM 26POS 0.5MM R/A

Stock on Request

AYF522615 Description

Short technical summary and product information.

CONN FFC BOTTOM 26POS 0.5MM R/A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	Panasonic Electronic Components
Actuator Material	Polyamide (PA), Nylon
Cable End Type	Tapered
Connector	Contacts, Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
FFC, FCB Thickness	0.30mm
Features	Solder Retention
Flat Flex Type	FFC, FPC
Height Above Board	0.079" (2.00mm)
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Rotary Lock
Mounting Type	Surface Mount, Right Angle
Number of Positions	26
Operating Temperature	-55°C ~ 85°C
Pitch	0.020" (0.50mm)
Termination	Solder
Voltage Rating	50V
