| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,359 pcs
|
4359 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
317 pcs
|
317 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Connector/Contacts | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Termination | |
| Termination Style | |
| Voltage Rating |

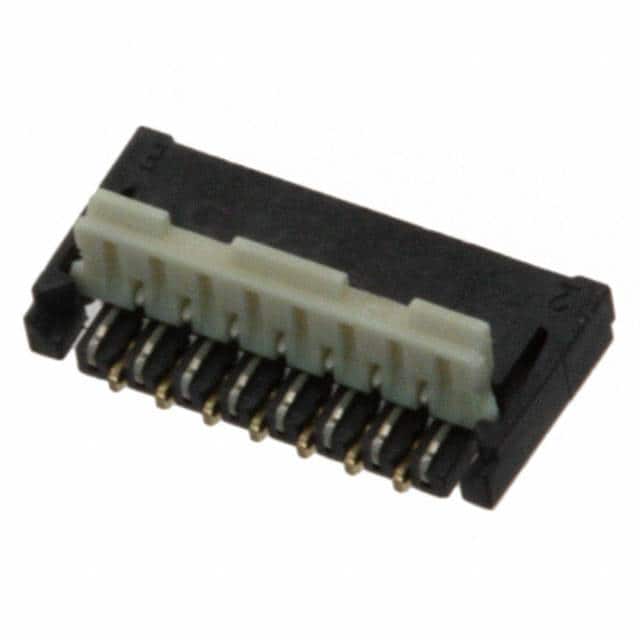

The Panasonic AYF331535 is a 15-position FPC connector featuring a compact 0.3mm pitch and a right-angle surface mount design. It is built with gold-plated copper alloy contacts for reliable signal integrity. The connector uses a flip lock backlock actuator for secure cable retention and is rated for 50V operation with an operating temperature range of -55°C to 85°C. The housing and actuator are made from liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. This connector accepts 0.20mm thick FPC cables with tapered ends and provides both top and bottom contact positions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.80 | $0.80 |
| 10+ | $0.68 | $0.68 |
| 25+ | $0.64 | $0.64 |
| 50+ | $0.61 | $0.61 |
| 100+ | $0.58 | $0.58 |
| 250+ | $0.54 | $0.54 |
| 500+ | $0.52 | $0.52 |
| 1,000+ | $0.49 | $0.49 |
| 2,500+ | $0.46 | $0.46 |
| 5,000+ | $0.44 | $0.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions.
0.30mm (0.012").
50V.
Surface mount, right angle.
-55°C to 85°C.
Flip lock, backlock.
0.88mm (0.035").
