| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
54,248 pcs
|
54248 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

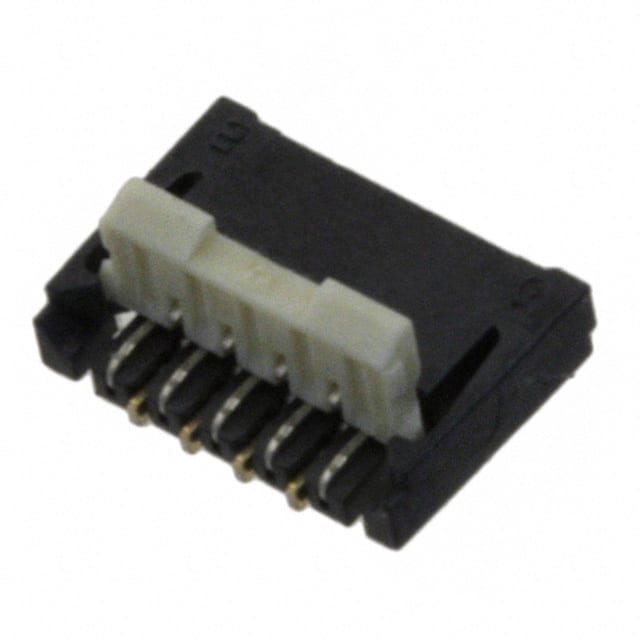

The Panasonic AYF330935 is a 9-position FPC connector with a 0.3mm pitch, designed for surface mount right angle mounting. It features gold-plated copper alloy contacts on both top and bottom sides, ensuring reliable electrical connections. The connector includes a flip lock backlock actuator for secure cable retention and supports a cable thickness of 0.20mm with a tapered end type.
Rated for 50V DC operation, the AYF330935 operates over a temperature range of -55°C to 85°C. The housing and actuator are made from Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. The connector height above board is 0.88mm, making it suitable for compact electronic assemblies.
This connector is ideal for applications requiring a low-profile, high-density interconnect solution. Its right-angle orientation facilitates space-saving PCB layouts, and the dual contact sides provide design flexibility for FPC cable routing.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.67 | $0.67 |
| 10+ | $0.57 | $0.57 |
| 25+ | $0.54 | $0.54 |
| 50+ | $0.51 | $0.51 |
| 100+ | $0.49 | $0.49 |
| 250+ | $0.46 | $0.46 |
| 500+ | $0.43 | $0.43 |
| 1,000+ | $0.41 | $0.41 |
| 2,500+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AYF330935 has 9 positions.
The pitch is 0.30mm (0.012 inches).
The voltage rating is 50V.
It uses surface mount, right angle mounting.
The operating temperature range is -55°C to 85°C.
It has a flip lock, backlock locking feature.
The contact finish is gold.
