| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| Reel Quantity | |
| Termination Style |

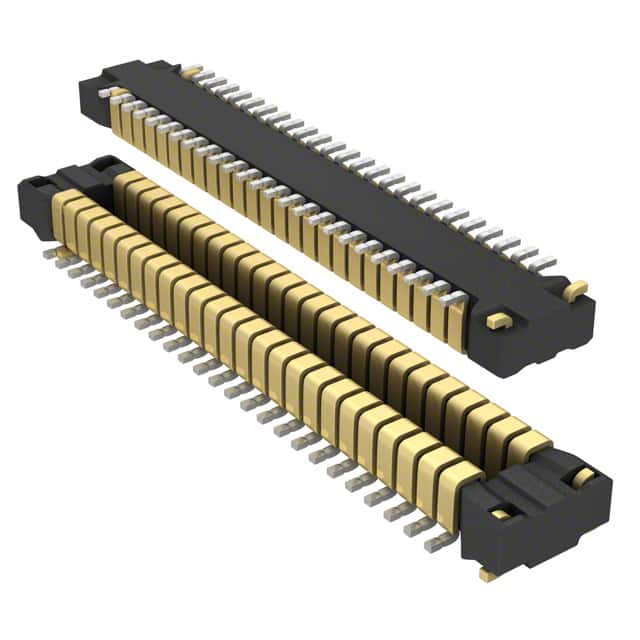

The Panasonic AXT650124 is a F4S series narrow pitch connector designed for board-to-FPC (Flexible Printed Circuit) applications. It is a header (male) connector offering 50 positions arranged in 2 rows with a fine 0.4mm pitch.
The connector features a surface mount mounting style with gull wing terminals, making it suitable for automated assembly. The contacts are finished with gold plating for reliable electrical performance. The connector has a mated stacking height of 1mm and a height above board of 0.84mm.
This header part is designed to mate with the corresponding F4S series socket to create a compact mezzanine board-to-FPC connection. It includes solder retention features to ensure mechanical stability during assembly and use.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.75 | $1.75 |
| 10+ | $1.49 | $1.49 |
| 25+ | $1.40 | $1.40 |
| 50+ | $1.33 | $1.33 |
| 100+ | $1.27 | $1.27 |
| 250+ | $1.19 | $1.19 |
| 500+ | $1.13 | $1.13 |
| 1,000+ | $1.08 | $1.08 |
| 3,000+ | $1.00 | $1.00 |
| 6,000+ | $0.95 | $0.95 |
| 9,000+ | $0.92 | $0.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.40mm.
The connector has 50 positions arranged in 2 rows.
It is a surface mount connector.
The contact finish is gold.
The mated stacking height is 1mm.
