| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
868 pcs
|
868 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Plating (Contact Portion) | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Lock Structure | |
| Mated Height | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packing | |
| Pitch | |
| Standard Package Qty | |
| Storage Temperature | |
| Tape & Reel | |
| Terminal Shape | |
| Width |

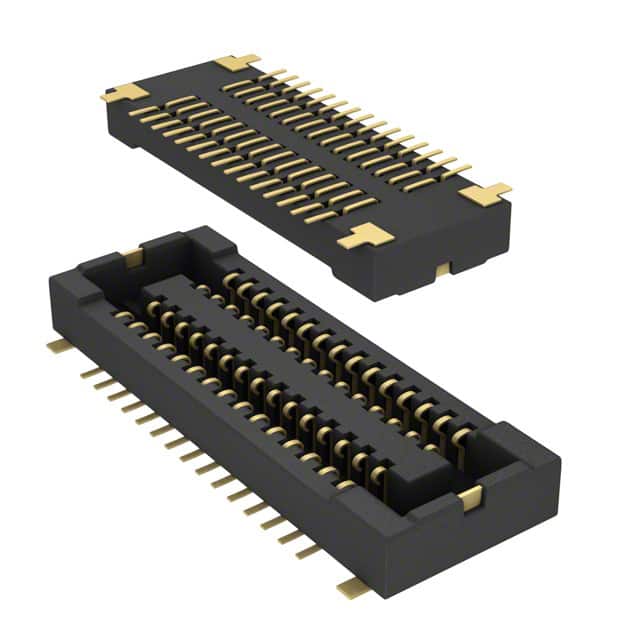

The Panasonic AXT530124 is a 30-position socket (outer shroud contacts) connector from the F4S series, featuring a fine 0.40mm (0.016") pitch. It is designed for board-to-FPC or board-to-board applications requiring a low mated height of 1.0mm and a compact width of 3.6mm.
The connector uses a surface mount mounting type with gull-wing-shaped terminals for easy visual inspection after soldering. Contacts are gold-plated over nickel for reliable electrical performance, and the housing includes a solder retention feature for secure board attachment.
A simple lock structure with tactile feedback ensures secure mating and reliable unmating operation. The connector is packaged in tape and reel with 3000 pieces per reel, suitable for automated assembly.
RoHS3 compliant as verified by the manufacturer.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.25 | $1.25 |
| 10+ | $1.06 | $1.06 |
| 25+ | $0.99 | $0.99 |
| 50+ | $0.94 | $0.94 |
| 100+ | $0.90 | $0.90 |
| 250+ | $0.84 | $0.84 |
| 500+ | $0.80 | $0.80 |
| 1,000+ | $0.76 | $0.76 |
| 3,000+ | $0.71 | $0.71 |
| 6,000+ | $0.67 | $0.67 |
| 9,000+ | $0.65 | $0.65 |
| 15,000+ | $0.63 | $0.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions.
0.40mm (0.016").
Surface mount.
1.0mm.
Yes, it is RoHS3 compliant (verified by manufacturer).
