| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Failure Rate | |
| Features | |
| Height Above Board | |
| Inner Carton Quantity | |
| Lead Spacing | |
| Lead Style | |
| Mated Height | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Outer Carton Quantity | |
| Package / Case | |
| Packaging Type | |
| Pitch | |
| Standard Package Quantity | |
| Tape & Reel | |
| Width |

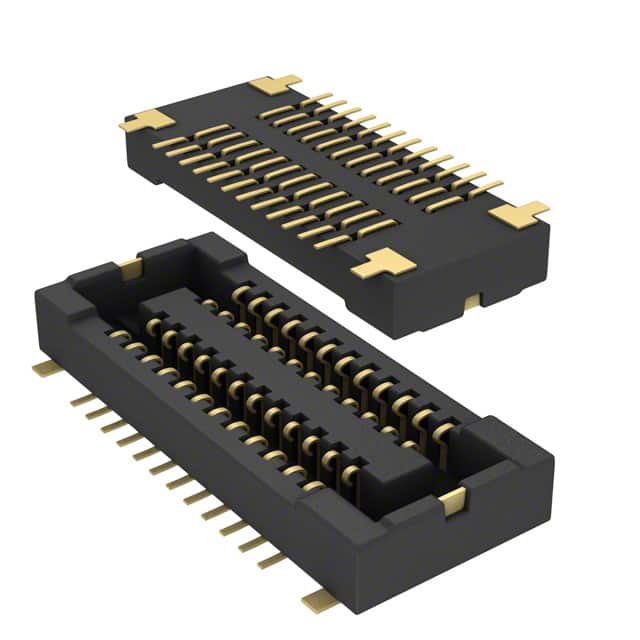

The Panasonic AXT524124 is a narrow pitch socket connector from the F4S series designed for board-to-FPC connections. It has 24 positions arranged in 2 rows with a 0.40mm pitch, making it suitable for space-constrained designs.
This socket connector features a mated stacking height of 1mm and a width of 3.6mm, contributing to a compact overall footprint. The contacts are finished with gold for reliable signal integrity. The connector includes solder retention features for secure attachment during assembly.
The AXT524124 is surface mount mountable and is supplied in tape and reel packaging with a standard quantity of 3000 pieces per reel. It is RoHS compliant (RoHS3).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.17 | $1.17 |
| 10+ | $1.00 | $1.00 |
| 25+ | $0.93 | $0.93 |
| 50+ | $0.89 | $0.89 |
| 100+ | $0.85 | $0.85 |
| 250+ | $0.79 | $0.79 |
| 500+ | $0.76 | $0.76 |
| 1,000+ | $0.72 | $0.72 |
| 3,000+ | $0.67 | $0.67 |
| 6,000+ | $0.63 | $0.63 |
| 9,000+ | $0.62 | $0.62 |
| 15,000+ | $0.59 | $0.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.40 mm.
It has 24 positions.
Surface mount.
The mated stacking height is 1 mm.
Yes, it is RoHS3 compliant.
It is part of the F4S series.
