| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

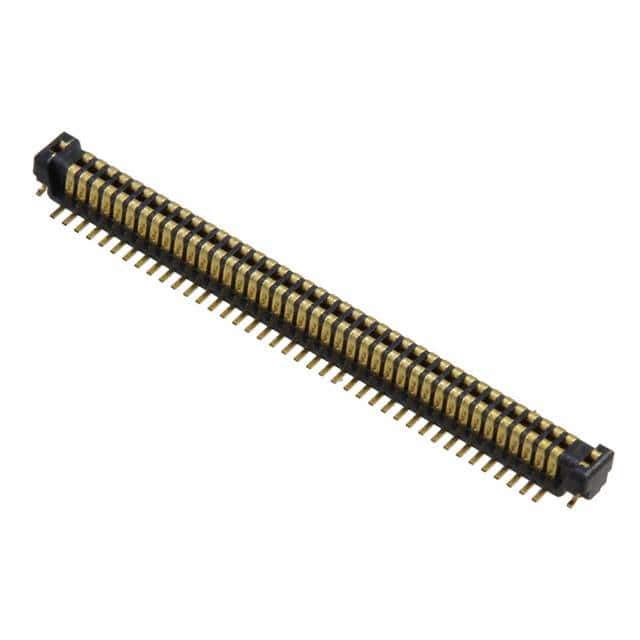

The Panasonic AXT480124 is a P4S series narrow pitch header connector designed for board-to-FPC applications. It features 80 positions arranged in 2 rows with a 0.40mm pitch, enabling space-efficient interconnections in compact electronic assemblies.
The connector uses gull-wing terminals with gold plating over nickel for reliable contact performance. It supports a surface mount mounting type and includes solder retention features for secure attachment to the PCB. The mated stacking heights of 1.5mm and 2.5mm provide flexibility in design.
With a height above board of 1.25mm, this connector is suitable for low-profile applications. It is RoHS3 compliant, supporting environmental requirements. The header is packaged in tape and reel for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.62 | $2.62 |
| 10+ | $2.23 | $2.23 |
| 25+ | $2.09 | $2.09 |
| 50+ | $1.99 | $1.99 |
| 100+ | $1.89 | $1.89 |
| 250+ | $1.77 | $1.77 |
| 500+ | $1.69 | $1.69 |
| 1,000+ | $1.62 | $1.62 |
| 3,000+ | $1.49 | $1.49 |
| 6,000+ | $1.42 | $1.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.40mm.
It has 80 positions.
Surface Mount.
Gold.
1.5mm and 2.5mm.
Yes, it features solder retention.
