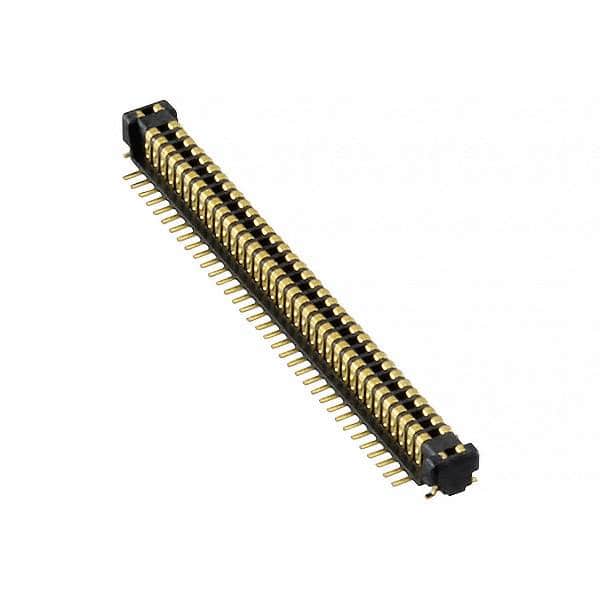

AXT470124 AXT470124 is a 70 position, 2 row, 0.40mm pitch surface mount board-to-board connector header from Panasonic Electronic Components. It features gold contact finish and solder retention for reliable connections.
Mfr Part #:

AXT470124

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
AXT470124 is a 70 position, 2 row, 0.40mm pitch surface mount board-to-board connector header from Panasonic Electronic Components. It features gold contact finish and solder retention for reliable connections.
✓ Total Stock: 3,000 pcs
$ Price Range: $1.74 - $1.78

AXT470124 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request 18+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AXT470124 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Features
Height Above Board
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

AXT470124 Description

Short technical summary and product information.

The AXT470124 is a board-to-board connector header manufactured by Panasonic Electronic Components. It features 70 positions arranged in 2 rows with a fine 0.40mm pitch, making it suitable for high-density interconnections in compact electronic devices. The connector utilizes a center strip contact design and is surface mount mounted, with a height above board of 1.25mm.



This connector supports mated stacking heights of 1.5mm and 2.5mm, allowing flexibility in board-to-board spacing. The contacts are finished with gold for reliable conductivity and corrosion resistance. The solder retention feature ensures secure attachment during reflow soldering.



Designed for mezzanine (board-to-board) applications, this connector is ideal for use in portable electronics, communication equipment, and other space-constrained assemblies where reliable high-density connections are required. The surface mount packaging facilitates automated assembly processes.

AXT470124 Quick Information

Product Type: Board-to-Board Connector Header
Series: P4S
Canonical Name: 70 Position Header, Center Strip Contacts, Surface Mount, 0.40mm Pitch, Gold Contact Finish
Subcategory: Board-to-Board Connectors

AXT470124 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AXT470124 Estimated Pricing

Qty Low High
3,000+ $1.78 $1.78
6,000+ $1.74 $1.74

Estimated market price range - modelled values for guidance only, not live distributor offers.

AXT470124 Features

  • 70 positions in 2 rows for high density.
  • 0.40mm fine pitch enables compact designs.
  • Surface mount mounting for automated assembly.
  • Gold contact finish ensures reliable conductivity.
  • Solder retention feature for secure soldering.

AXT470124 Applications

  • Used in portable electronic devices.
  • Ideal for high-density board-to-board connections.
  • Suitable for mezzanine stacking applications.
  • Common in communication equipment assemblies.
  • Perfect for space-constrained PCB designs.

AXT470124 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the AXT470124 have?

70 positions.

What is the pitch of the AXT470124?

0.40mm (0.016").

What is the mounting type of the AXT470124?

Surface mount.

How many rows does the AXT470124 have?

2 rows.

What is the contact finish of the AXT470124?

Gold.

What mated stacking heights does the AXT470124 support?

1.5mm and 2.5mm.

Does the AXT470124 have solder retention?

Yes, it features solder retention.
