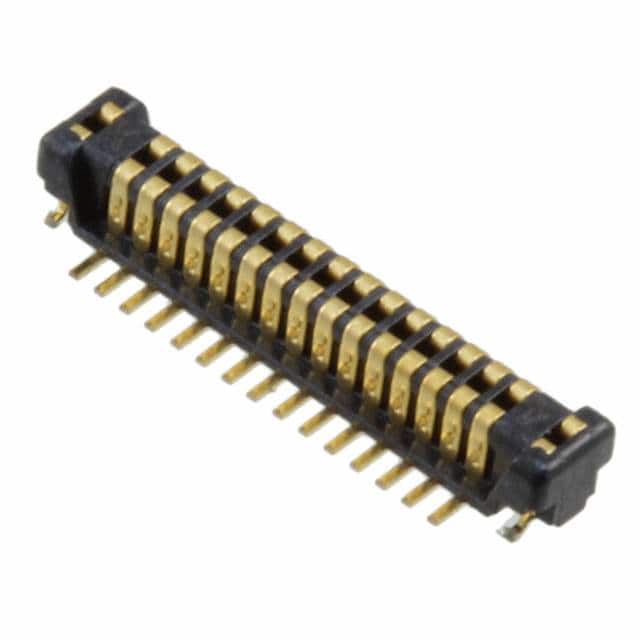

AXT430224 Panasonic AXT430224 is a 30-position, 0.4mm pitch, surface mount header connector from the P4S series. It features gold contact finish and solder retention for reliable board-to-board connections.
Mfr Part #:

AXT430224

Available from 2 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
Panasonic AXT430224 is a 30-position, 0.4mm pitch, surface mount header connector from the P4S series. It features gold contact finish and solder retention for reliable board-to-board connections.
✓ Total Stock: 49,843 pcs
$ Price Range: $1.51 - $2.41

AXT430224 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
49,148 pcs
On Request
49148 pcs On Request 1 On Request On Request 17+16+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
695 pcs
On Request
695 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AXT430224 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Features
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
SVHC Present
Tape & Reel
View Similar Products (0)

AXT430224 Description

Short technical summary and product information.

The Panasonic AXT430224 is a 30-position surface mount header connector from the P4S series. It features a 0.4mm pitch with 2 rows of center strip contacts arranged for high-density board-to-board stacking.



This connector supports mated stacking heights of 1.5mm and 2.5mm, making it suitable for space-constrained mezzanine applications. The header includes a solder retention feature to secure the connector during soldering and use.



Contact finish is gold for reliable electrical performance. The component is designed for surface mount assembly and the manufacturer confirms compliance with EU RoHS Directive 2011/65/EU and 2015/863/EU.

AXT430224 Quick Information

Product Type: Header Connector
Series: P4S
Canonical Name: Panasonic AXT430224 P4S Series Header Connector
Subcategory: Mezzanine Connector

AXT430224 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

AXT430224 Estimated Pricing

Qty Low High
1+ $2.41 $2.41
10+ $2.05 $2.05
3,000+ $1.51 $1.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

AXT430224 Features

  • 30 positions in 2 rows.
  • 0.4mm pitch for high density.
  • Gold contact finish for reliability.
  • Solder retention for secure assembly.
  • Supports 1.5mm and 2.5mm stacking heights.

AXT430224 Applications

  • Suitable for mezzanine board-to-board stacking.
  • Ideal for space-constrained electronic assemblies.
  • Common in portable and compact electronic devices.

AXT430224 FAQs

3 frequently asked questions generated from this part’s specifications.
How many positions does the AXT430224 connector have?

The AXT430224 has 30 positions arranged in 2 rows.

What is the pitch of the Panasonic AXT430224?

The pitch is 0.40mm (0.016").

What mounting type does the AXT430224 use?

It is designed for surface mount assembly.
