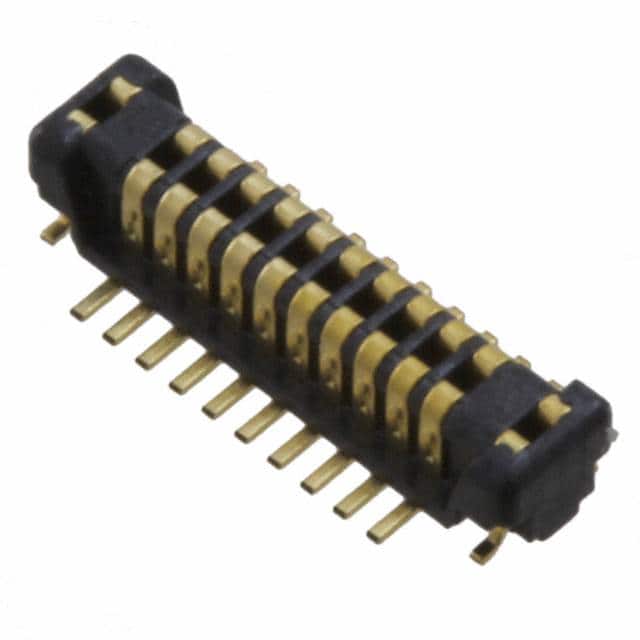

The AXT420124 is a 20-position header connector from Panasonic Electronic Components, featuring center strip contacts arranged in 2 rows with a fine 0.40mm pitch. Designed for surface mount assembly, this connector has a height above board of 1.25mm and supports mated stacking heights of 1.5mm and 2.5mm, making it suitable for mezzanine board-to-board applications in compact electronic devices.
The contacts are finished with gold for reliable electrical performance and corrosion resistance. The connector includes a solder retention feature to ensure secure attachment during reflow soldering. Its compact footprint and low profile enable high-density PCB designs.
This connector is commonly used in portable electronics, modules, and other space-constrained applications where reliable board-to-board connections are required. The surface mount packaging facilitates automated assembly processes.
