| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
930 pcs
|
930 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

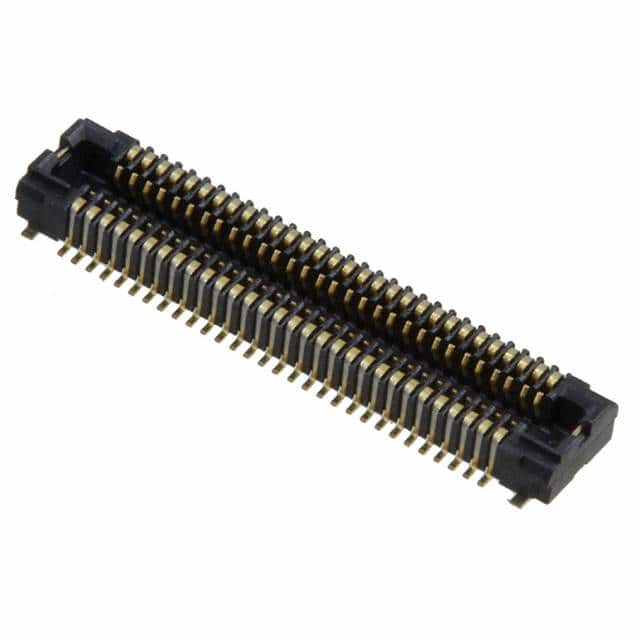

The Panasonic AXT360224 is a socket connector from the P4S series, designed for board-to-board mezzanine applications. It features 60 positions arranged in 2 rows with a fine 0.4mm pitch, enabling high-density interconnections.
This surface mount connector has a gold contact finish for reliable conductivity and includes a solder retention feature to secure the connector during assembly. The connector has a height above board of 2.45mm and supports mated stacking heights of 2.5mm and 3mm, making it suitable for space-constrained designs.
The AXT360224 is compliant with RoHS and REACH regulations, and has a moisture sensitivity level of 1 (unlimited). It is typically used in applications requiring compact, high-reliability board-to-board connections.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $3.74 | $3.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions.
0.40mm.
Surface Mount.
2 rows.
Gold.
Solder Retention.
2.5mm and 3mm.
