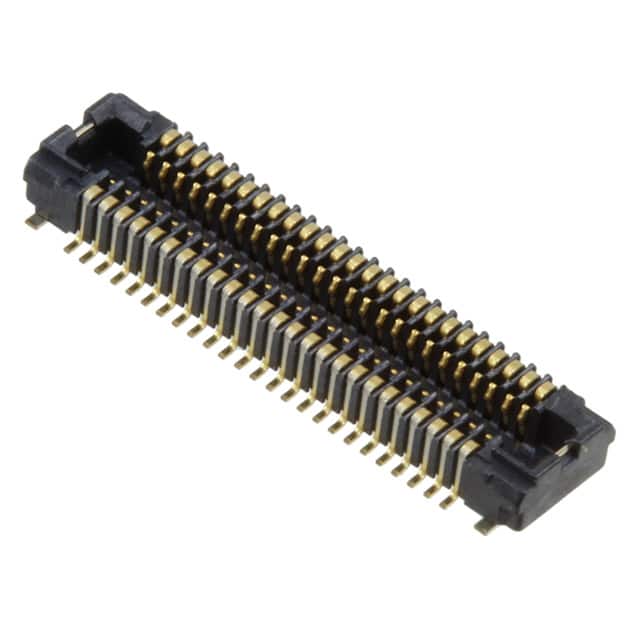

AXT350124 Panasonic AXT350124 is a 50-position socket connector with 0.4mm pitch, surface mount, gold contact finish. It features solder retention and is RoHS compliant.
Mfr Part #:

AXT350124

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
Panasonic AXT350124 is a 50-position socket connector with 0.4mm pitch, surface mount, gold contact finish. It features solder retention and is RoHS compliant.
✓ Total Stock: 68 pcs
$ Price Range: $0.82 - $1.56

AXT350124 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
68 pcs
On Request
68 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AXT350124 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Features
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
View Similar Products (0)

AXT350124 Description

Short technical summary and product information.

The Panasonic AXT350124 is a socket connector from the P4S series, designed for board-to-FPC connections. It features 50 positions arranged in 2 rows with a fine 0.4mm pitch, enabling high-density interconnects in space-constrained designs. The connector uses surface mount technology and has a height above board of 1.45mm, with a mated stacking height of 1.5mm. Contact finish is gold for reliable electrical performance. Solder retention features help secure the connector during assembly. This part is RoHS3 compliant, confirming it does not contain restricted substances per EU directives.

AXT350124 Quick Information

Product Type: Socket Connector
Series: P4S
Canonical Name: Panasonic AXT350124 P4S Series Socket, Outer Shroud Contacts, 50 Position, 0.4mm Pitch, Surface Mount, Gold Contact Finish
Subcategory: Mezzanine Connector

AXT350124 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AXT350124 Estimated Pricing

Qty Low High
1+ $1.56 $1.56
10+ $1.32 $1.32
25+ $1.24 $1.24
50+ $1.18 $1.18
100+ $1.12 $1.12
250+ $1.05 $1.05
500+ $1.00 $1.00
1,000+ $0.96 $0.96
3,000+ $0.88 $0.88
6,000+ $0.84 $0.84
9,000+ $0.82 $0.82

Estimated market price range - modelled values for guidance only, not live distributor offers.

AXT350124 Features

  • 50 positions in 2 rows.
  • 0.4mm pitch for high density.
  • Surface mount with solder retention.
  • Gold contact finish for reliability.
  • 1.45mm height above board.

AXT350124 Applications

  • Board-to-board mezzanine connections.
  • FPC/FFC interconnect applications.
  • Space-constrained electronic assemblies.
  • Portable device internal wiring.

AXT350124 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the AXT350124 have?

50 positions in 2 rows.

What is the pitch of this connector?

0.40mm.

What is the mounting type?

Surface mount.

What is the contact finish?

Gold.

What is the height above board?

1.45mm.

What is the mated stacking height?

1.5mm.

Does it have solder retention?

Yes, it features solder retention.
