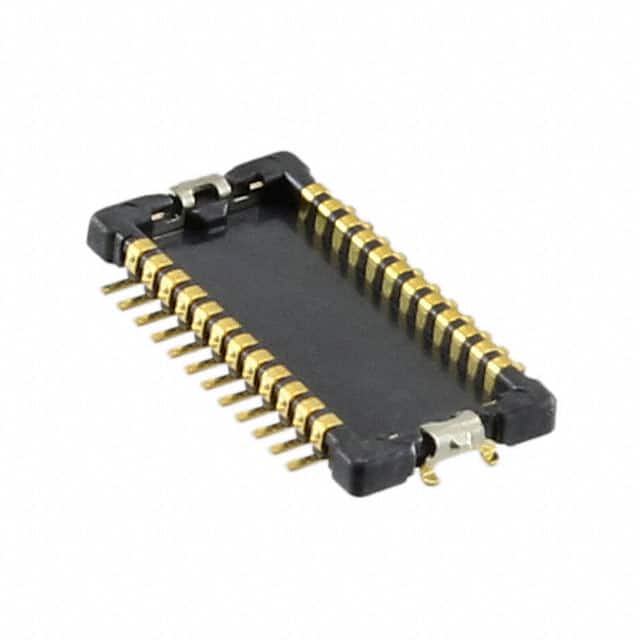

AXK8L24124BG Panasonic F4 series header connector with 24 positions, 0.4mm pitch, surface mount, gold contacts. Features a 0.9mm mated height and solder retention.
Mfr Part #:

AXK8L24124BG

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
Panasonic F4 series header connector with 24 positions, 0.4mm pitch, surface mount, gold contacts. Features a 0.9mm mated height and solder retention.
✓ Total Stock: 2,032 pcs
$ Price Range: $0.97

AXK8L24124BG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,032 pcs
On Request
2032 pcs On Request 1 On Request On Request 14+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AXK8L24124BG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Failure Rate
Features
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
Terminal Type
View Similar Products (0)

AXK8L24124BG Description

Short technical summary and product information.

The AXK8L24124BG is a header connector from Panasonic's F4 series, designed for board-to-FPC interconnections. This connector features 24 positions arranged in 2 rows with a 0.4mm pitch, making it suitable for high-density applications.



With a surface mount design and a mated height of just 0.9mm, this connector contributes to ultra-thin product profiles. The gold contact finish ensures reliable electrical connections over multiple mating cycles. Solder retention features provide secure mounting during assembly.



Additional design features include a simple locking structure on the soldering terminals and contact points, which provides tactile feedback when mated. An insulating wall on the bottom surface of the connector prevents contact between the metal pins and PCB traces, enabling pattern wiring underneath the connector and saving board space.



The connector is supplied in embossed tape and plastic reel packaging, with 3000 pieces per reel. It is part of the F4 series known for narrow pitch connectors.

AXK8L24124BG Quick Information

Product Type: Board-to-Board Connector Header
Series: F4
Canonical Name: Panasonic F4 Series Header, Outer Shroud Contacts, 24 Position, 0.4mm Pitch, Surface Mount, Gold
Subcategory: Mezzanine Board-to-Board Header

AXK8L24124BG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AXK8L24124BG Estimated Pricing

Qty Low High
1,000+ $0.97 $0.97

Estimated market price range - modelled values for guidance only, not live distributor offers.

AXK8L24124BG Features

  • 24 positions in 2 rows at 0.4mm pitch.
  • Ultra-low 0.9mm mated height profile.
  • Gold contact finish for reliable connections.
  • Solder retention feature for secure mounting.
  • Insulating wall enables PCB routing underneath.

AXK8L24124BG Applications

  • Ideal for compact portable devices like smartphones.
  • Used in board-to-FPC interconnections.
  • Supports ultra-thin product designs.

AXK8L24124BG FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the AXK8L24124BG have?

24 positions.

What is the pitch of this connector?

0.4mm.

What is the mounting type?

Surface mount.

What is the mated height?

0.9mm.

What is the contact finish?

Gold.

What is the packaging quantity?

3000 pieces per reel in embossed tape and plastic reel.

What series is this connector?

F4 series.
