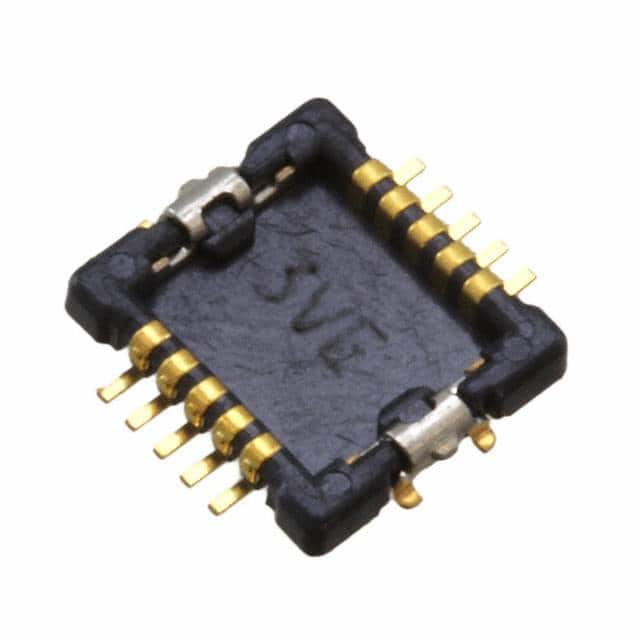

AXK8L10124BG Panasonic AXK8L10124BG is a 10 position, 2 row, 0.4mm pitch surface mount header with gold contacts and solder retention.
Mfr Part #:

AXK8L10124BG

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
Panasonic AXK8L10124BG is a 10 position, 2 row, 0.4mm pitch surface mount header with gold contacts and solder retention.
✓ Total Stock: 24,000 pcs

AXK8L10124BG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
24,000 pcs
On Request
24000 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AXK8L10124BG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Plating
Failure Rate
Features
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
SVHC Present
Storage Temperature
Tape & Reel
Terminal Type
Termination Style
View Similar Products (0)

AXK8L10124BG Description

Short technical summary and product information.

The Panasonic AXK8L10124BG is a surface mount header from the F4 series, designed for compact board-to-board mezzanine connections. It features 10 positions arranged in 2 rows with a fine 0.4mm pitch, enabling high-density PCB layouts. The connector has a low profile with a mated height of 0.9mm and a height above board of 0.63mm, suitable for space-constrained portable devices.



Contact reliability is ensured by gold plating on a nickel base, with fork type soldering terminals that provide secure mechanical and electrical connections. The header includes solder retention features to enhance board-level reliability during reflow soldering.



This component is packaged in embossed tape and plastic reel with a standard quantity of 3000 pieces per reel, facilitating automated assembly. The F4 series is designed for applications such as cellular phones, digital cameras, and other compact portable electronics.

AXK8L10124BG Quick Information

Product Type: Header, Outer Shroud Contacts
Series: F4
Canonical Name: Panasonic F4 Series 10 Position 0.4mm Pitch Surface Mount Header, Outer Shroud Contacts
Subcategory: Board-to-Board Connectors

AXK8L10124BG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AXK8L10124BG Features

  • 10 positions, 2 rows, 0.4mm pitch.
  • Surface mount with solder retention.
  • Gold plated contacts for reliability.
  • Ultra low profile, mated height 0.9mm.
  • Fork type soldering terminals.

AXK8L10124BG Applications

  • Ideal for compact portable devices like cell phones.
  • Used in board-to-board mezzanine connections.
  • Suitable for high-density PCB designs.

AXK8L10124BG FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the AXK8L10124BG have?

10 positions.

What is the pitch of this connector?

0.40mm (0.016").

What is the mounting type?

Surface Mount.

What is the contact finish?

Gold.

What is the mated height?

0.9mm.

Does it have solder retention?

Yes, solder retention is included.

What series is this connector from?

F4 series.
