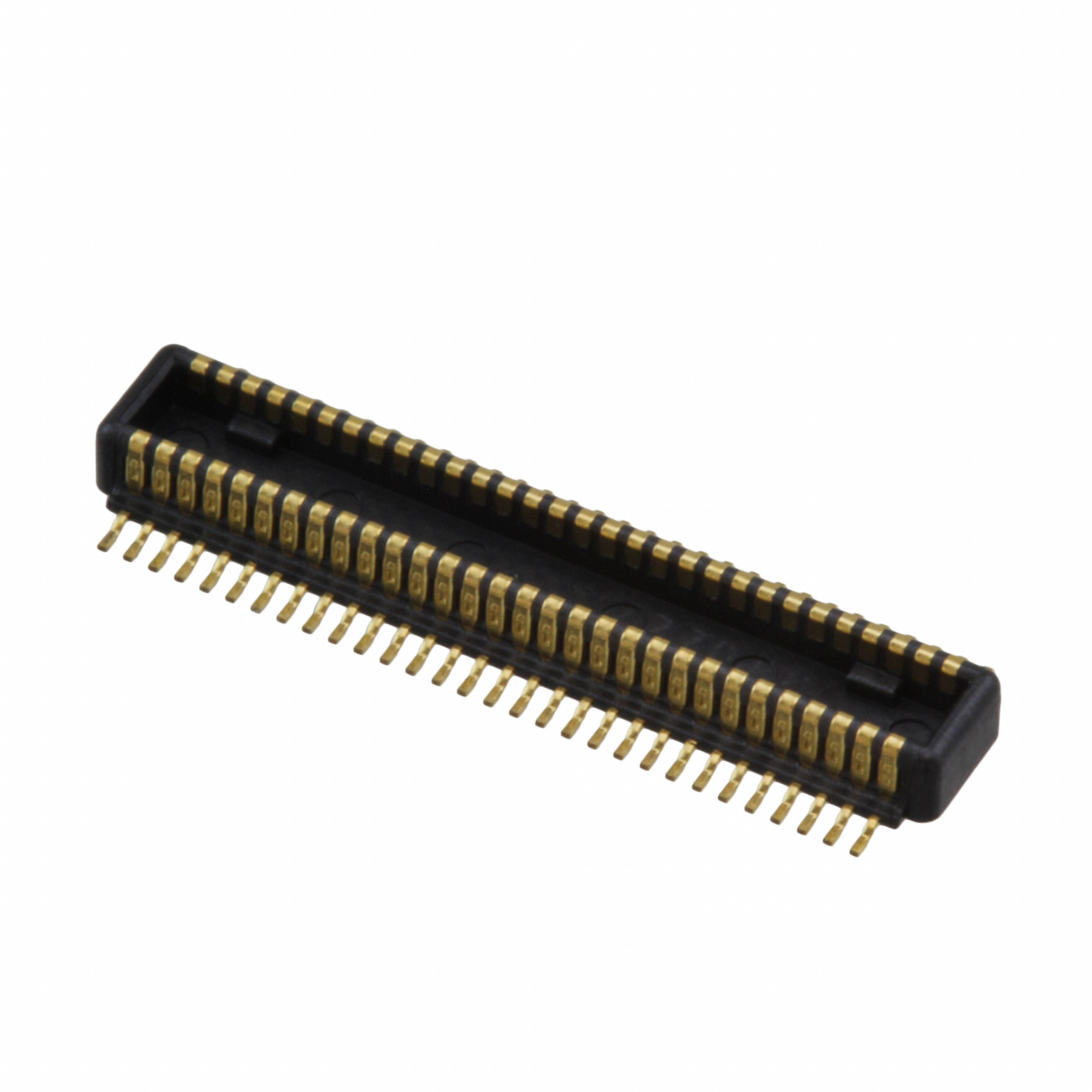

AXK860145WG Panasonic AXK860145WG is a 60 position, 0.4mm pitch surface mount header with outer shroud contacts and gold plating. It supports mated stacking heights of 1.5mm, 2mm, and 2.5mm.
Mfr Part #:

AXK860145WG

Available from 2 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
Panasonic AXK860145WG is a 60 position, 0.4mm pitch surface mount header with outer shroud contacts and gold plating. It supports mated stacking heights of 1.5mm, 2mm, and 2.5mm.
✓ Total Stock: 7,002 pcs
