AXK850145WG Panasonic AXK850145WG is a 50 position, 0.4mm pitch header connector with outer shroud contacts, surface mount, gold finish, and 2 rows.
Mfr Part #:

AXK850145WG

Available from 2 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
Panasonic AXK850145WG is a 50 position, 0.4mm pitch header connector with outer shroud contacts, surface mount, gold finish, and 2 rows.
✓ Total Stock: 5,000 pcs
$ Price Range: $1.25 - $2.22

AXK850145WG Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request 12+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AXK850145WG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Height Above Board
Lead Spacing
Mated Stacking Heights
Mounting Type
Number of Pins
Number of Positions
Number of Rows
Pitch
SVHC Present
Storage Temperature
Tape & Reel
Termination Style
View Similar Products (0)

AXK850145WG Description

Short technical summary and product information.

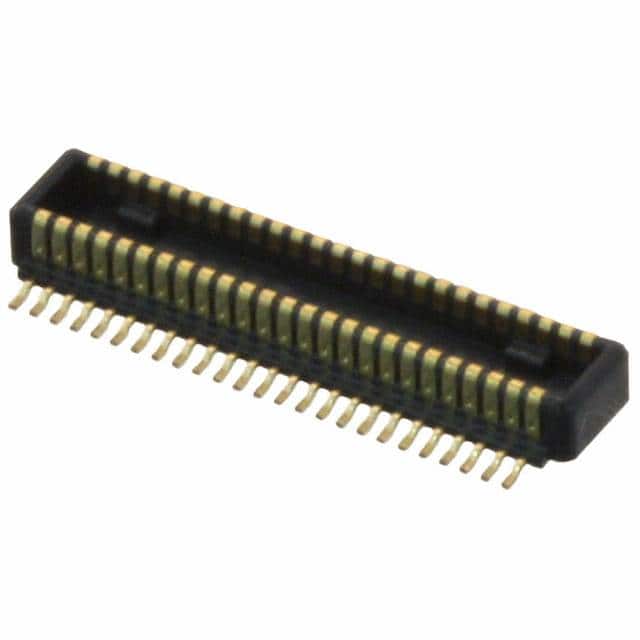

The Panasonic AXK850145WG is a 50-position header connector from the P4 series, featuring a 0.4mm pitch and outer shroud contacts. It is designed for surface mount soldering and has a height above board of 1.32mm, supporting mated stacking heights of 1.5mm, 2mm, and 2.5mm. The connector has 2 rows of gold-plated contacts and is terminated via solder terminals.



This connector is suitable for board-to-board and board-to-FPC applications in compact electronic devices. The P4 series includes features such as insertion guides for improved mating, impact dispersion keys for shock resistance, and a simple lock mechanism for tactile feedback. The design also facilitates efficient mounting with a terminal flatness of 0.08mm and construction resistant to creeping flux.



The part is supplied in embossed tape and plastic reel packaging with a standard package quantity of 3000 pieces per reel.

AXK850145WG Quick Information

Product Type: Header Connector
Series: P4
Canonical Name: Panasonic AXK850145WG 50 Position 0.4mm Pitch Header, Outer Shroud Contacts, Surface Mount, Gold
Subcategory: Board-to-Board Connector

AXK850145WG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 90
REACH Status: REACH Unaffected

AXK850145WG Estimated Pricing

Qty Low High
1+ $2.22 $2.22
10+ $1.89 $1.89
25+ $1.69 $1.69
100+ $1.61 $1.61
250+ $1.51 $1.51
500+ $1.43 $1.43
1,000+ $1.37 $1.37
3,000+ $1.25 $1.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

AXK850145WG Features

  • 50 positions with 0.4mm pitch.
  • Surface mount with gold contact finish.
  • Supports 1.5mm, 2mm, 2.5mm stacking heights.
  • 2 rows of outer shroud contacts.
  • Embossed tape and reel packaging.

AXK850145WG Applications

  • Board-to-board connections in mobile devices.
  • Used in digital still cameras and video cameras.
  • Suitable for handheld terminals and consumer equipment.
  • Board-to-FPC interconnects in compact electronics.

AXK850145WG FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of the AXK850145WG connector?

The pitch is 0.4mm.

How many positions does the AXK850145WG have?

It has 50 positions.

What is the mounting type for this connector?

Surface mount.

What mated stacking heights are supported?

1.5mm, 2mm, and 2.5mm.

What is the contact finish?

Gold.

How is the connector packaged?

Embossed tape and plastic reel, 3000 pieces per reel.
