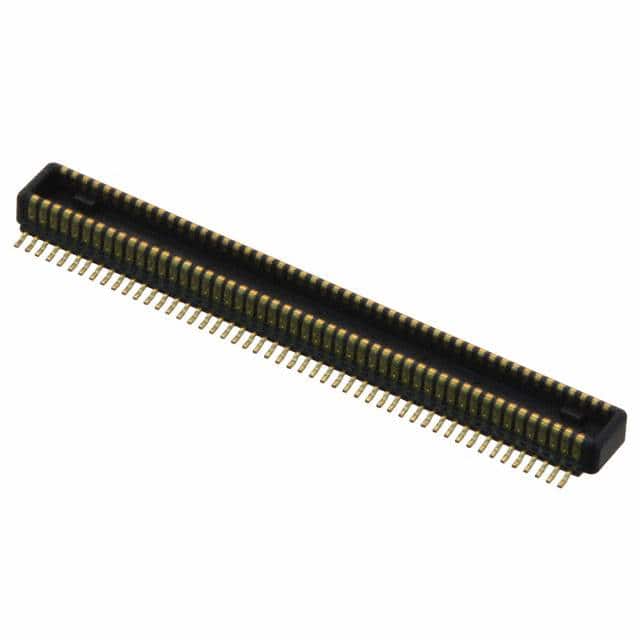

The Panasonic Electronic Components AXK800145WG is a 100-position, 0.4mm pitch surface mount header connector with two rows and outer shroud contacts, designed for board-to-board and board-to-FPC applications in compact electronic devices. It supports mated stacking heights of 1.5mm, 2mm, and 2.5mm, providing flexibility for different board spacing requirements. The contacts are finished with gold for reliable conductivity and corrosion resistance.
The connector incorporates impact dispersion keys to improve drop shock resistance, and a simple lock structure that provides tactile feedback during mating/unmating. Insertion guides help align the connector and accommodate positional tolerances. The terminal flatness of 0.08mm aids soldering consistency, and the design allows visual inspection of solder joints.
Packaging is tape and reel (3000 pieces per reel), suitable for automated assembly. The connector is RoHS3 compliant. Note that the datasheet lists this product as 'Partly to Be Discontinued' with a last time buy date of September 30, 2019; verify current availability before ordering for new designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.68 | $3.68 |
| 10+ | $3.14 | $3.14 |
| 25+ | $2.80 | $2.80 |
| 100+ | $2.67 | $2.67 |
| 250+ | $2.50 | $2.50 |
| 500+ | $2.38 | $2.38 |
| 1,000+ | $2.36 | $2.36 |
| 3,000+ | $2.29 | $2.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100 positions.
0.4mm (0.016 inches).
Surface Mount.
Gold.
1.5mm, 2mm, and 2.5mm.
Yes, it is RoHS3 compliant.
Datasheet indicates 'Partly to Be Discontinued' with last time buy September 30, 2019.
