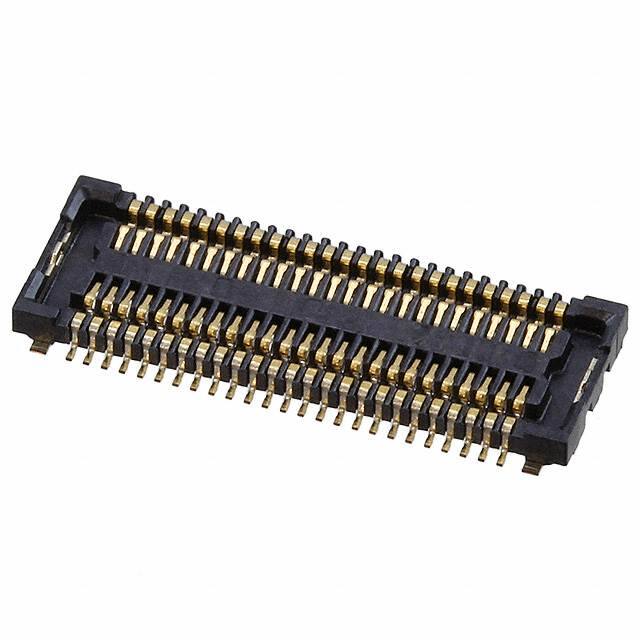

The Panasonic AXK7L50223G is a 50-position socket connector from the F4 series, designed for board-to-board and board-to-FPC applications. It features a 0.4mm pitch and 2 rows of contacts, with a surface mount termination for compact assembly. The connector employs gold plating on the contact area for reliable signal integrity and corrosion resistance, with a copper alloy contact material and liquid crystal polymer (LCP) insulator for durability.
This socket boasts an ultra-low profile with a mated stacking height of just 0.9mm, making it ideal for thin portable devices. It includes a solder retention feature to secure the connector during reflow soldering. The operating temperature range is -55°C to 85°C, suitable for various environmental conditions.
The connector is available in tape and reel packaging with 3000 pieces per reel for automated placement. It is designed for surface mount technology (SMT) assembly. The design includes an insulating wall on the bottom surface to prevent pattern contact, allowing routing under the connector and saving PCB space.
Typical applications include cellular phones, digital cameras, DVD players, and other compact portable electronics where space is at a premium.
50 positions.
0.4mm.
Surface mount.
0.9mm.
-55°C to 85°C.
