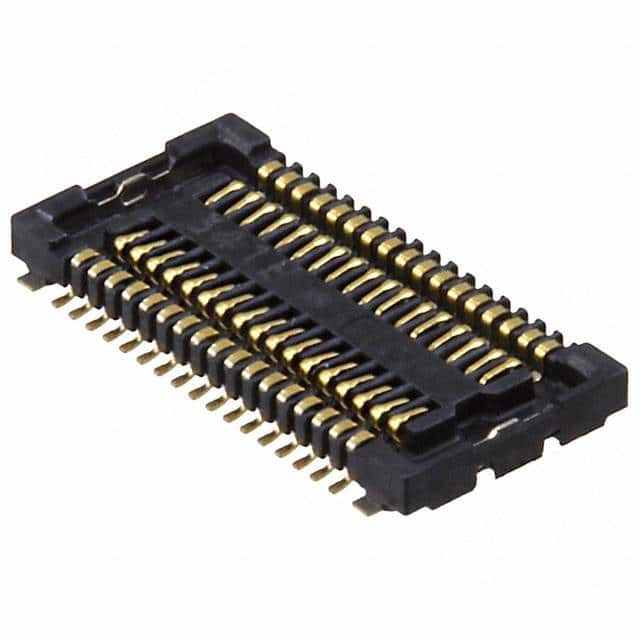

The Panasonic AXK7L34223G is a socket connector from the F4 series, a narrow pitch connector family designed for space-constrained electronic devices. It offers 34 positions arranged in two rows with a 0.4mm pitch, enabling high-density interconnections. The connector achieves an ultra-low profile mated height of 0.9mm, making it one of the lowest profile two-piece connectors available, ideal for thin products like smartphones, digital cameras, and portable media players.
Mechanically, the connector features gold-plated contacts with a nickel base and gold surface on both the contact and terminal portions, ensuring reliable electrical performance and corrosion resistance. The socket includes a solder retention feature to secure the connector during reflow soldering and an insulating wall on the bottom surface that prevents contact with PCB patterns, allowing circuit routing underneath the connector.
The AXK7L34223G is supplied in embossed tape and plastic reel packaging with a quantity of 3000 pieces per reel, suitable for automated pick-and-place assembly. It is designed for surface mount mounting and is RoHS compliant. The F4 series also includes header counterparts for complete board-to-board or board-to-FPC connections, with a locking structure that provides tactile feedback upon mating.
34 positions.
0.4mm.
Surface mount.
0.9mm.
Gold.
F4 series.
Yes, it features solder retention.
