| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,291 pcs
|
1291 pcs | On Request | 1 | On Request | On Request | 2011+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Failure Rate | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Height | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Quantity | |
| Packaging Type | |
| Pitch | |
| Storage Temperature | |
| Tape & Reel |

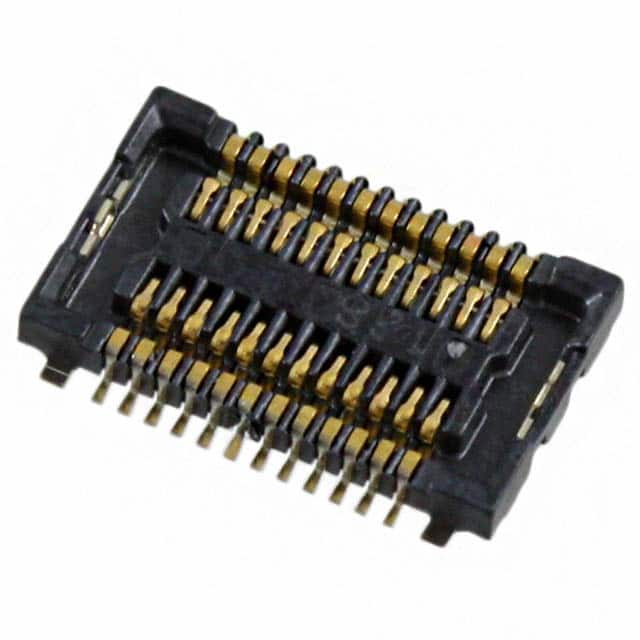

The AXK7L24227G is a socket connector from Panasonic's F4 series, designed for board-to-FPC applications. It offers 24 positions arranged in 2 rows with a tight 0.4mm pitch, enabling compact, high-density interconnections. The connector has a mated stacking height of 0.9mm, making it suitable for ultra-thin electronic devices.
Key specifications include a surface mount mounting type with solder retention for secure attachment to the PCB. The contact finish is gold, ensuring reliable electrical performance and corrosion resistance. Packaging is provided in embossed tape and reel format with a quantity of 3000 pieces per reel, supporting automated assembly processes.
The part is RoHS3 compliant and REACH unaffected, meeting current environmental standards. The datasheet confirms a mated height of 0.9mm. This connector is ideal for compact portable devices such as cellular phones, DVD players, and digital still cameras.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $1.45 | $1.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 24 positions.
The pitch is 0.4mm.
It uses surface mount mounting.
The mated stacking height is 0.9mm.
The contact finish is gold.
Yes, it is RoHS3 compliant.
It is packaged in embossed tape and reel with 3000 pieces per reel.
