| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,511 pcs
|
2511 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Plating Base | |
| Contact Plating Surface | |
| Height Above Board | |
| Mated Height Range | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packing Method | |
| Packing Quantity | |
| Pitch | |
| Pitch Series | |
| Positioning Bosses | |
| RoHS Compliance | |
| Standard Package Quantity | |
| Storage Temperature | |
| Tape & Reel | |
| Terminal Flatness | |
| Termination Style |

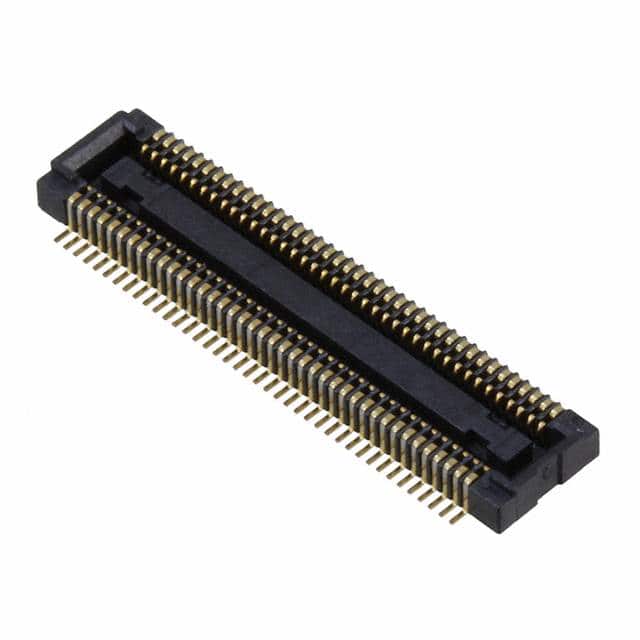

The Panasonic AXK780147G is a narrow-pitch board-to-board connector from the P4 series, designed for high-density interconnections in compact electronic devices. This socket connector features 80 positions arranged in two rows with a 0.4mm pitch, enabling significant space savings on the PCB. The connector has a mated height range of 1.5mm to 3.5mm, providing flexibility for various stacking configurations. Contacts are gold-plated over a nickel base for reliable electrical performance and corrosion resistance. The surface mount termination style with a terminal flatness of 0.08mm facilitates efficient soldering and visual inspection. The connector is RoHS compliant and packaged in embossed tape and reel with a standard quantity of 3000 pieces. Typical applications include mobile phones, digital cameras, handheld terminals, and industrial equipment where reliable board-to-board connections are required.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $1.75 | $1.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80 positions.
0.4mm (0.016 inches).
Surface mount (SMD).
1.5mm to 3.5mm.
Gold plating on surface, nickel base.
Yes, RoHS compliant.
3000 pieces per reel (embossed tape and plastic reel).
