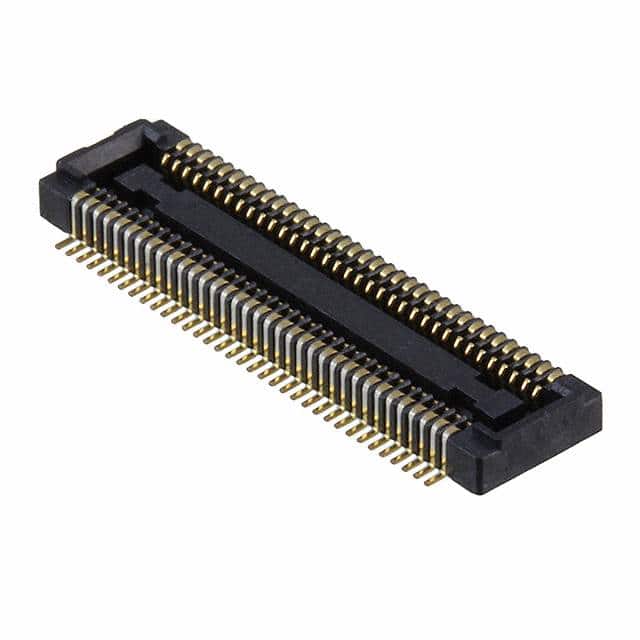

AXK770147G 70 position board-to-board socket connector with 0.4mm pitch. Surface mount with gold contacts, designed for stacking heights of 1.5mm.
Mfr Part #:

AXK770147G

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
70 position board-to-board socket connector with 0.4mm pitch. Surface mount with gold contacts, designed for stacking heights of 1.5mm.
✓ Total Stock: 50 pcs
$ Price Range: $1.63 - $2.84

AXK770147G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request 10+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AXK770147G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
SVHC Present
Storage Temperature
Tape & Reel
View Similar Products (0)

AXK770147G Description

Short technical summary and product information.

The Panasonic AXK770147G is a 70-position, 0.4mm pitch board-to-board socket connector designed for surface mount applications. It features a two-row configuration with gold-plated contacts and a mated stacking height of 1.5mm, making it suitable for compact electronic assemblies.



This connector incorporates impact dispersion keys that enhance shock resistance by distributing impact across four mating points. A simple lock mechanism provides tactile feedback during mating and unmating, and the design includes insertion guides to facilitate alignment. The connector bottom surface prevents contact with PCB metal terminals, allowing flexibility in pattern wiring.



Typical applications include mobile devices such as cellular phones and digital cameras, as well as industrial equipment and handheld terminals. The connector is RoHS compliant. According to the manufacturer, this part is partly to be discontinued with a last time buy date of September 30, 2019.



The socket is supplied in embossed tape on plastic reels, 3000 pieces per reel, with two reels per packaging unit.

AXK770147G Quick Information

Product Type: Board-to-Board Socket Connector
Series: P4
Canonical Name: 70 Position Socket Connector, 0.4mm Pitch, Surface Mount, Gold
Subcategory: Arrays, Edge Type, Mezzanine (Board to Board)

AXK770147G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

AXK770147G Estimated Pricing

Qty Low High
1+ $2.84 $2.84
10+ $2.42 $2.42
25+ $2.16 $2.16
100+ $2.06 $2.06
250+ $1.93 $1.93
500+ $1.84 $1.84
1,000+ $1.78 $1.78
3,000+ $1.63 $1.63

Estimated market price range - modelled values for guidance only, not live distributor offers.

AXK770147G Features

  • 70 positions with 0.4mm pitch.
  • Surface mount gold-plated contacts.
  • 1.5mm mated stacking height.
  • Impact dispersion keys for shock resistance.
  • Simple lock for tactile feedback.

AXK770147G Applications

  • Mobile phones and digital cameras.
  • Industrial measurement equipment.
  • Handheld consumer terminals.
  • Board-to-board mezzanine connections.

AXK770147G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

70 positions.

What is the pitch?

0.40mm (0.016").

What is the mounting type?

Surface Mount.

What is the contact finish?

Gold.

What is the mated stacking height?

1.5mm.

How many rows are there?

2 rows.

Is this connector RoHS compliant?

Yes, as stated in the datasheet.
