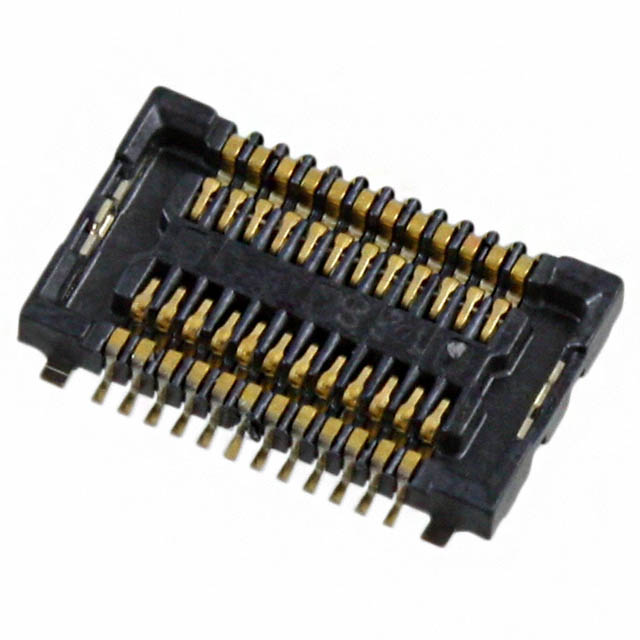

AXK734227G Panasonic AXK734227G is a 0.4mm pitch, 34 position socket connector for board-to-board applications, surface mount with gold contacts and 2mm mated stacking height.
Mfr Part #:

AXK734227G

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
Panasonic AXK734227G is a 0.4mm pitch, 34 position socket connector for board-to-board applications, surface mount with gold contacts and 2mm mated stacking height.
✓ Total Stock: 35,899 pcs

AXK734227G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
35,899 pcs
On Request
35899 pcs On Request 1 On Request On Request 17+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AXK734227G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Storage Temperature
Tape & Reel
Termination Style
View Similar Products (0)

AXK734227G Description

Short technical summary and product information.

The Panasonic AXK734227G is a 0.4mm pitch socket connector designed for board-to-board and board-to-FPC applications. It features 34 positions arranged in 2 rows, with a surface mount termination style and gold contact finish for reliable electrical performance. The connector supports a mated stacking height of 2mm and has a height above board of 1.92mm.



This connector is part of the P4 series and is RoHS compliant. It is packaged in Tape & Reel (Embossed) with a standard package quantity of 3000 pieces per reel. The design includes features such as impact dispersion keys and a simple lock mechanism for secure mating.



Typical applications include mobile devices, digital cameras, video cameras, and industrial equipment where high-density board-to-board connections are required. The connector's low profile and fine pitch make it suitable for compact electronic assemblies.

AXK734227G Quick Information

Product Type: Board-to-Board Connector
Series: AXK
Canonical Name: Panasonic AXK734227G 0.4mm Pitch 34 Position Socket Connector
Subcategory: Mezzanine Connector

AXK734227G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AXK734227G Features

  • 0.4mm pitch for high-density designs.
  • 34 positions in 2 rows.
  • Surface mount solder termination.
  • Gold contact finish for reliability.
  • 2mm mated stacking height.

AXK734227G Applications

  • Board-to-board connections in mobile devices.
  • Used in digital cameras and video cameras.
  • Suitable for industrial equipment.
  • Ideal for compact consumer electronics.

AXK734227G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the AXK734227G?

The pitch is 0.40mm.

How many positions does the AXK734227G have?

It has 34 positions.

What is the mounting type?

Surface Mount.

What is the contact finish?

Gold.

What is the mated stacking height?

2mm.

Is the AXK734227G RoHS compliant?

Yes, it is RoHS3 compliant according to the datasheet.

What packaging is available?

Tape & Reel (Embossed) with 3000 pieces per reel.
