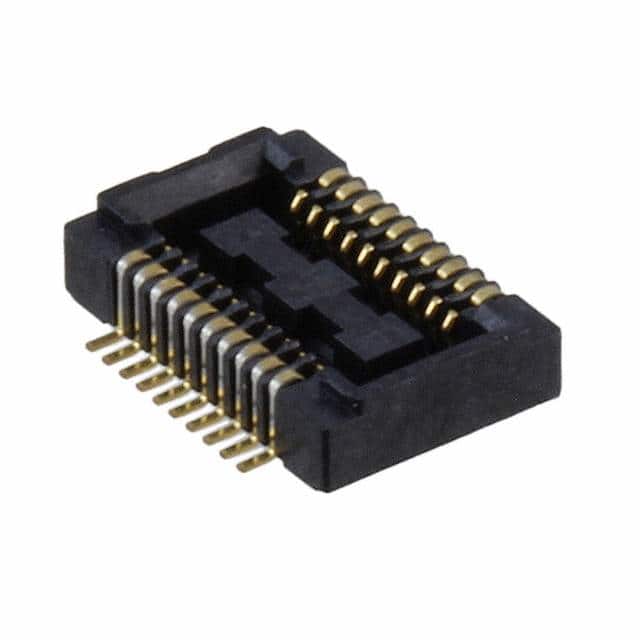

The Panasonic AXK720147G is a 20 position socket connector from the P4 series, featuring a 0.4mm pitch and 2 rows. It is designed for board-to-FPC connections in compact electronic devices. The connector utilizes a "TOUGH CONTACT" construction that provides high contact reliability in adverse environments. It supports mated stacking heights of 1.5mm, 2.0mm, 2.5mm, 3.0mm, and 3.5mm, with this specific part configured for a 1.5mm mated height.
The connector is surface mount with gold contact finish and has a height above board of 1.5mm. The terminal flatness is 0.08mm, aiding in reliable soldering. Impact dispersion keys inside the body help resist shock from drops. The design also allows visual inspection of solder joints and prevents contact between the PCB and metal terminals for flexible pattern wiring.
Packaging is provided as 3000 pieces on embossed tape and plastic reel. The connector is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited). It is suitable for mobile devices like cellular phones and digital cameras, as well as industrial equipment and handheld terminals.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.60 | $1.60 |
| 10+ | $1.36 | $1.36 |
| 25+ | $1.28 | $1.28 |
| 50+ | $1.22 | $1.22 |
| 100+ | $1.16 | $1.16 |
| 250+ | $1.09 | $1.09 |
| 500+ | $1.03 | $1.03 |
| 1,000+ | $0.98 | $0.98 |
| 3,000+ | $0.91 | $0.91 |
| 6,000+ | $0.87 | $0.87 |
| 9,000+ | $0.84 | $0.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.40mm (0.016").
It has 20 positions arranged in 2 rows.
Surface mount.
The mated height is 1.5mm. The part supports mated heights of 1.5mm, 2.0mm, 2.5mm, 3.0mm, and 3.5mm.
Gold.
Yes, it is RoHS3 Compliant.
The standard package is 3000 pieces on embossed tape and plastic reel.
