| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,202 pcs
|
2202 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Height Code | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packing | |
| Pitch | |
| Pitch Series | |
| Storage Temperature | |
| Surface Treatment | |
| Tape & Reel | |
| Termination Style |

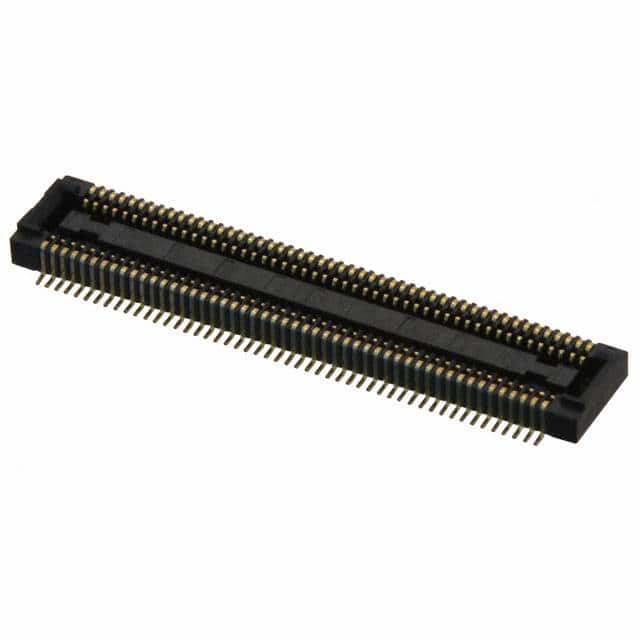

The Panasonic AXK700147G is a 100-position board-to-board socket connector from the P4 series, featuring a 0.4mm pitch and a mated stacking height of 1.5mm. Designed for surface mount assembly, this connector uses gold-plated contacts for reliable electrical performance and includes impact dispersion keys for enhanced shock resistance. The simple lock mechanism provides tactile feedback during mating, and the design facilitates visual inspection of solder joints.
Applications include mobile devices such as smartphones and digital cameras, as well as industrial equipment and handheld terminals. The connector is RoHS compliant and packaged in embossed tape and plastic reel at 3,000 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.29 | $4.29 |
| 10+ | $4.06 | $4.06 |
| 25+ | $3.85 | $3.85 |
| 100+ | $3.65 | $3.65 |
| 250+ | $3.62 | $3.62 |
| 1,000+ | $3.36 | $3.36 |
| 3,000+ | $3.17 | $3.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.40mm.
It has 100 positions arranged in 2 rows.
Surface mount (SMT) with soldering terminals.
Gold on nickel-plated surface.
1.5mm.
3,000 pieces embossed tape and plastic reel, supplied as 2 reels.
RoHS3 compliant per datasheet, but unverified.
